Short Wave Quartz Infrared Heating Tube halogen heater

$5.00 / Piece | 10 Pieces (Min. Order)
Electric Heater Type:
Infrared Heater
$5.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Heating Element:
Halogen
Installation:
Wall Mounted
Certification:
CE
Function:
Adjustable Thermostat, Lighting
Number of Bulbs:
1
Use:
Bathroom, Bedroom, Garden, Living Room
Place of Origin:
china'
Brand Name:
Hongtai
Model Number:
quartz heater
Tube material:
quartz
Heating elements:
carbon fiber
Wattage Tolerance:
+5%, -10%
Resistance tolerance:
+10%, -5%
Voltages available:
380V,240V, 220V,110V,36V,24V or 12V
Max operating temp:
700℃
Application:
paint drying, heating oven, bathroom heater and so on
Color temperature:
2400-2500K
Wave length:
2.2-3.5 um
Reflector:
gold/ceramic/clear

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X20X20 cm
Single gross weight:
1.0 kg
Package Type:
pastic bag,carton and wooden case
Lead Time :
Quantity(Piece) 1 - 10 11 - 50 >50
Est. Time(days) 10 12 To be negotiated
quartz heater
Product Description

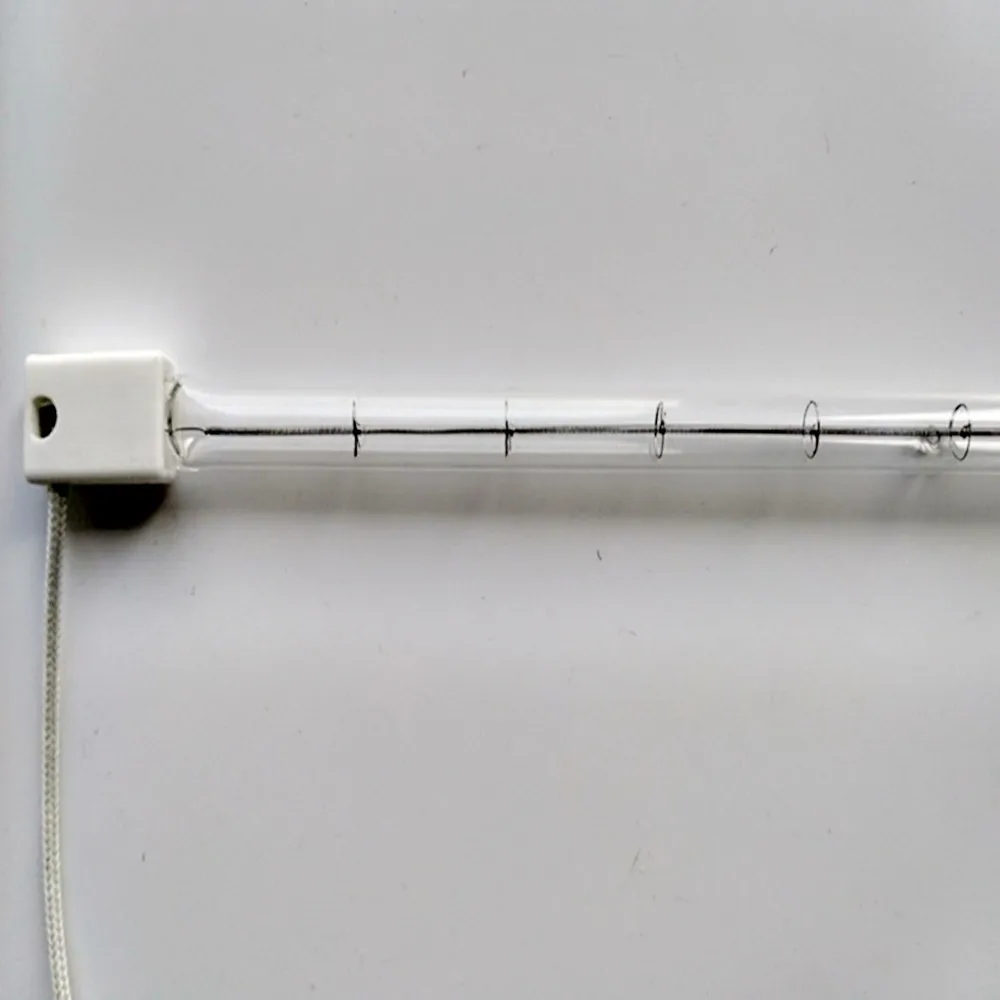

Quartz infrared heating elements emit medium wave infrared energy and are particularly effective in systems where rapid heater response is required. Tubular infrared lamps in quartz bulbs produce infrared radiation in wavelengths of 1.5–8 µm. The enclosed filament operates at around 2500 K, producing more shorter-wavelength radiation than open wire-coil sources. Developed in the 1950s at General Electric, these lamps produce about 100 W/in (4 W/mm) and can be combined to radiate 500 watts per square foot (5400 W/m2). To achieve even higher power densities, halogen lamps were used. Quartz infrared lamps are used in highly polished reflectors to direct radiation in a uniform and concentrated pattern.

Most common designs consist of either a satin milky-white quartz glass tube or clear quartz with an electrically resistant element, usually a tungsten wire, or a thin coil of iron-chromium-aluminum alloy. The atmospheric air is removed and filled with inert gases such as nitrogen and argon then sealed. In quartz halogen lamps, a small amount of halogen gas is added to prolong the heater's operational life.


Product Name
quartz infrared tube heater
Material
quartz tube and carbon fiber filament
Type
single tube, twin tube and other can be customized
Reflector
gold, ceramic and clear
Voltage
110V, 120V, 200V, 220V, 230V, 240V, 400V, 480V and other can be customized
Wattage
300W-3000W, and other can be customized
Length
100-2000mm
Warranty
one year/12 monthes

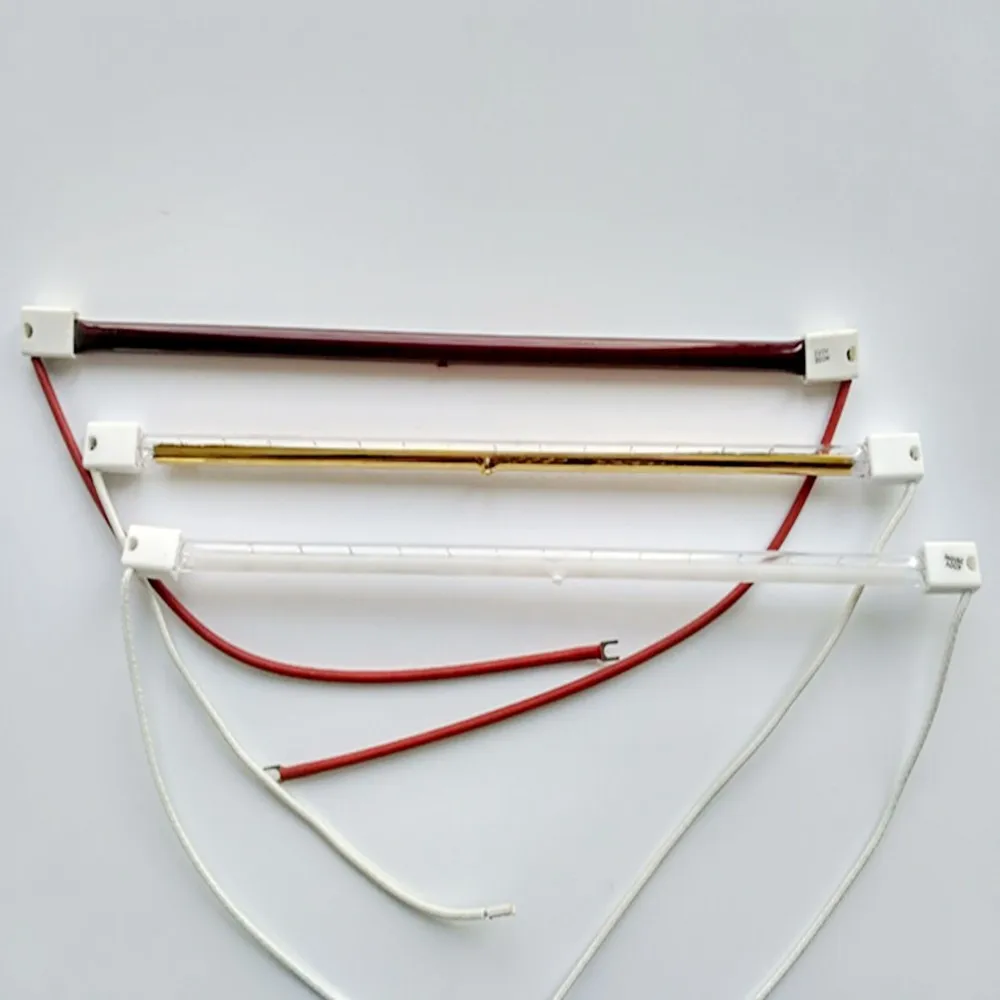

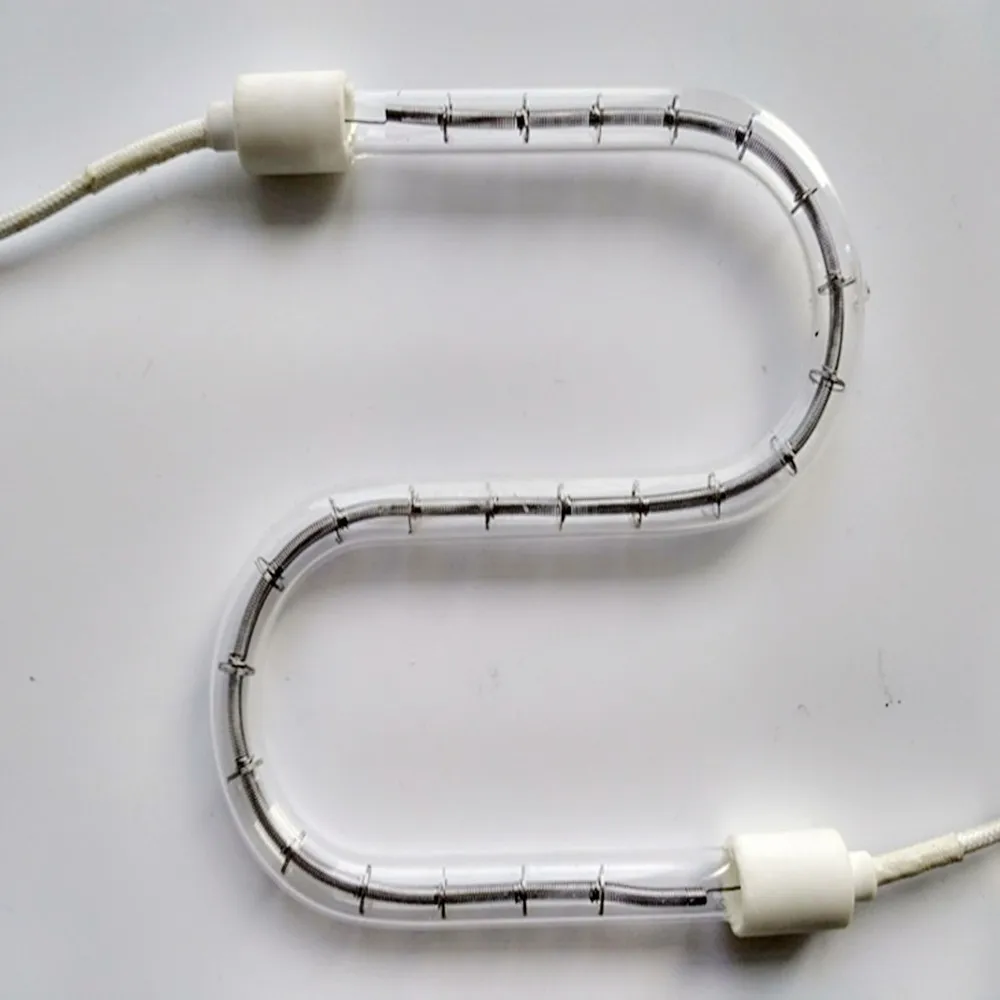

Products Show

How to order ?

Pls provide this informations:

1. Heater Type :single tube or twin tube.

2. Heater Reflector :gold/ceramic/clear

3.Vottage :380V,240V, 220V,200V,110V and other can be customized.

4.Wattage :80W,100W,200W,250W and other can be customized.

5.Heater Tube Diameter.

6.Heater Length.

7.Other special requirements if you have.

8.Quantity :the mini order quantity is 10pcs.
