Sokkia Gance G3-32X 360 degrees 400G optional dial auto level

$92.00 / Piece | 4 Pieces (1 lot) (Min. Order)
1 batch = 4 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Gance
Model Number:
G3
Product name:
Gance G3-32X automatic level
Type:
Pendulum compensator with magnetic damping system
Image:
Erect
Objective aperture:
42mm
Magnification:
32X
color:
green
water protection:
IPX6 (IEC 60529:2001)
Weight:
4.1 lbs. (1.85kg)
Minimum Division:
1°/1gon
model:
G3

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
40X45X30 cm
Gross weight per batch:
12.0 kg
Package Type:
Size:40cm x 45cm x30cm Weight: 12kg packing:4pcs/1carton We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , pls inform us before the order.
Picture Example:
package-img
Lead Time :
3

Sokkia Gance G3-32X 360 degrees 400G optional dial auto level

Product Description

 Specification:



TELESCOPE

G3

         Length

215mm (8.46 in.)

Magnification

32X

Objective Aperture

42mm (1.65 in.)

Resolving Power

 3 in.

Field of View

 1°20’

(at 100m/328ft.)

     (2.3m/7.5 ft.)

Min. Focus from end of telescope

0.2m (7.9 in.)

Min. Focus from instrument center

  0.3m (1 ft.)


 Erect

Stadia Constant

0

Stadia Ratio

100

Focusing Knob

2-speed

Sighting Aid

Peep Sight

ACCURACY (1km double run leveling)

Without Micrometer

2.0mm

COMPENSATOR

Type

Pendulum compensator with magnetic damping system

Setting Accuracy

0.3 in

Working Range

±15 ft.

CIRCULAR LEVEL

Sensitivity

10 ft./2mm

HORIZONTAL CIRCLE

Diameter

103mm (4.1 in.)

Minimum Division

1°/1gon

GENERAL

Water Resistance

IPX6 (IEC 60529:2001)

Operating Temperature

-4°F to +122°F (-20ºC to +50ºC)

Width

5.12 in. (130mm)

Length

8.46 in. (215mm)

Height

5.51 in. (140mm)

Weight

4.1 lbs. (1.85kg)

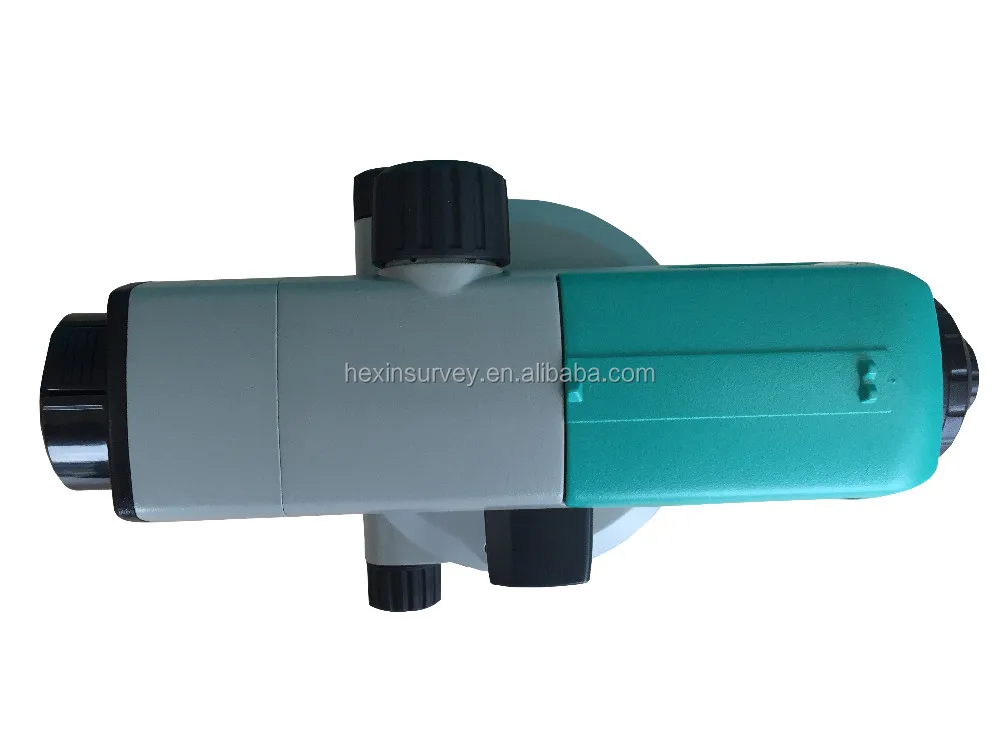

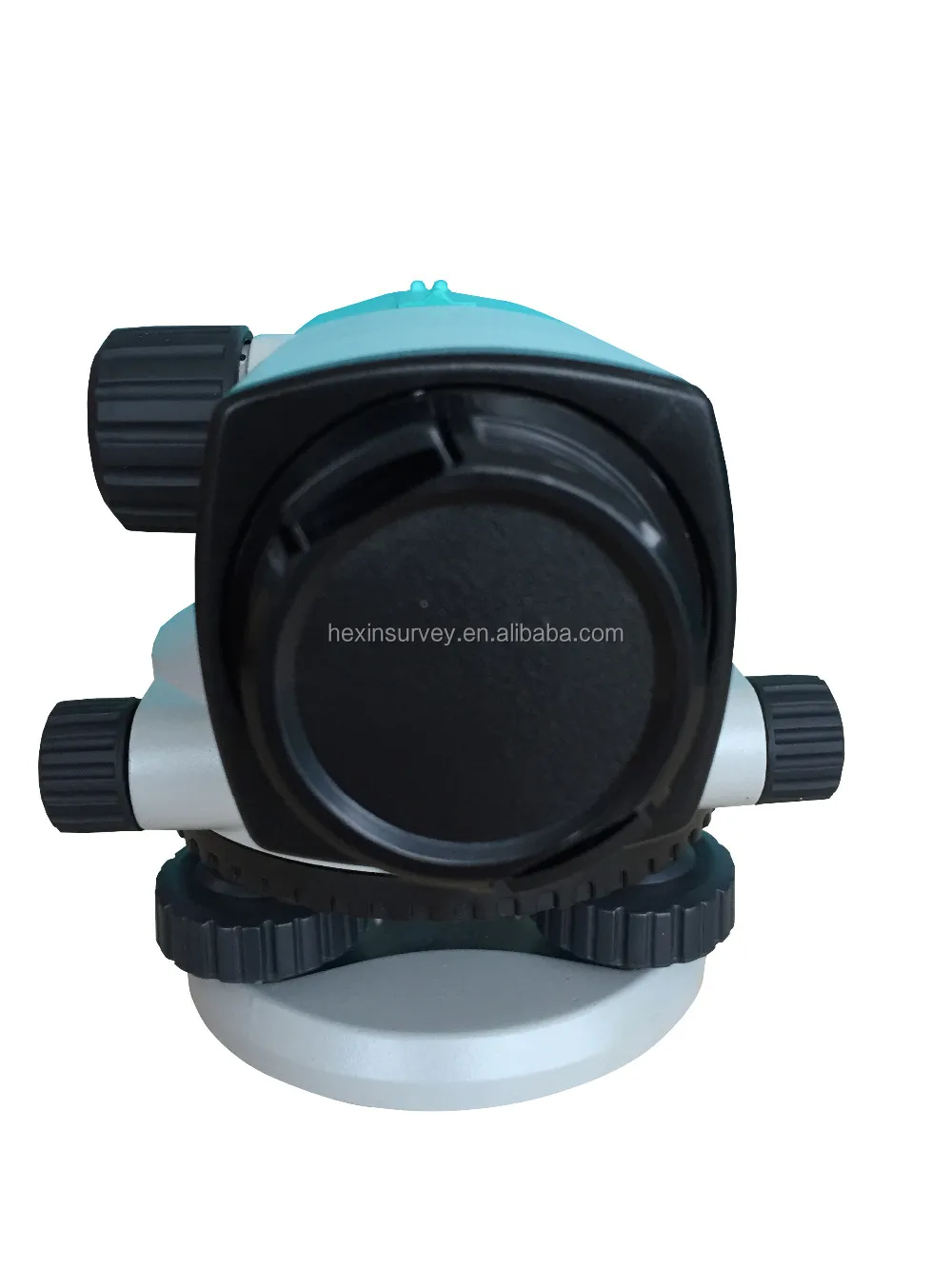

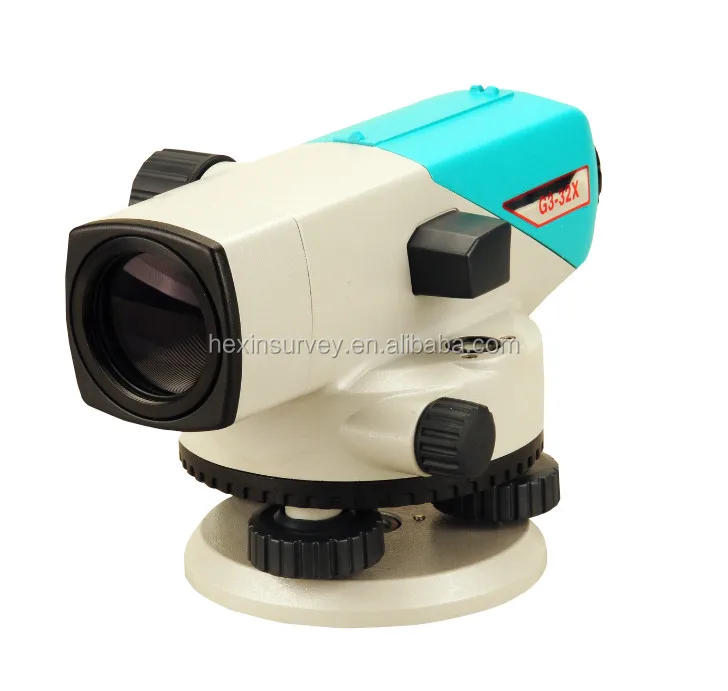

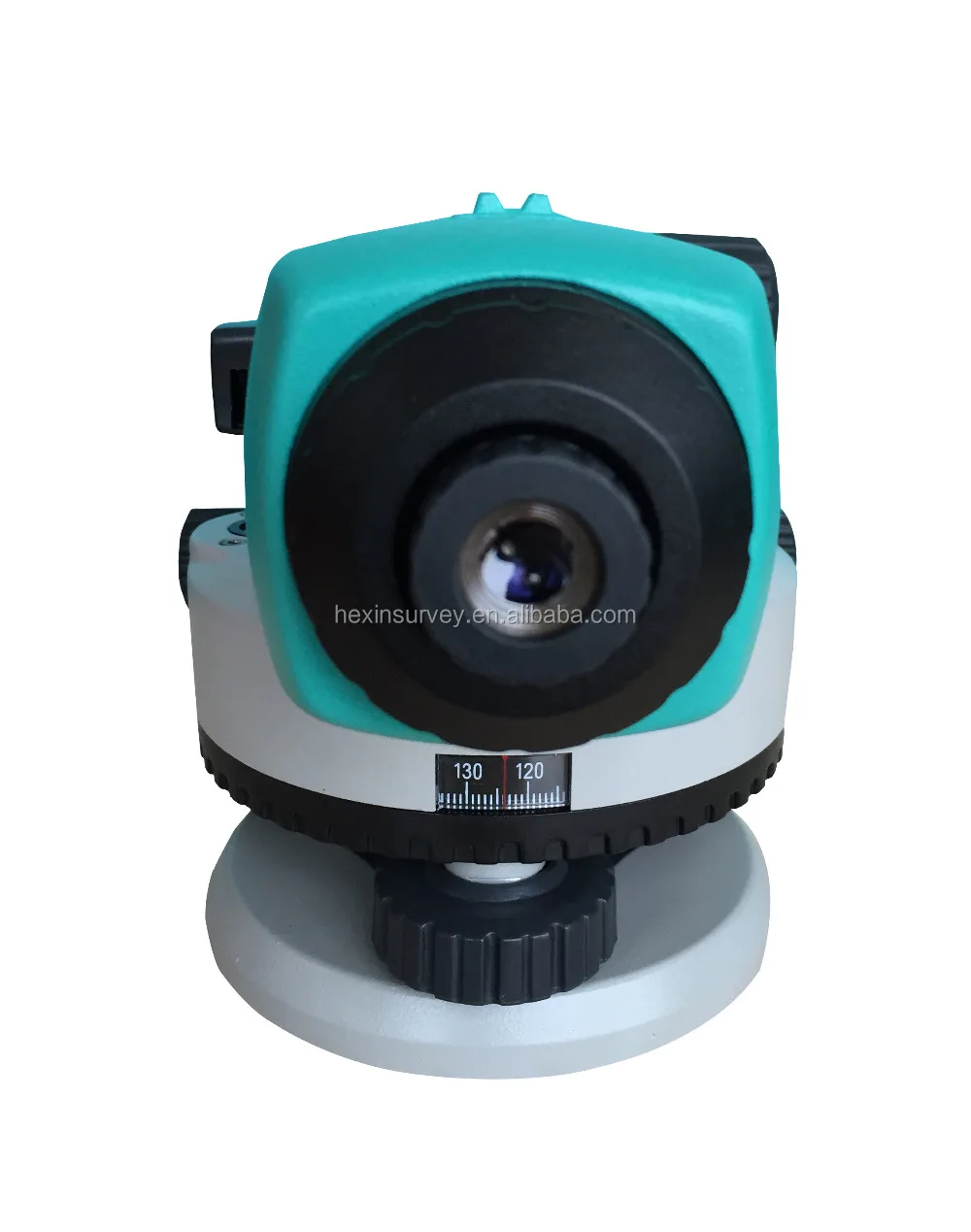

product show














Features:

1.High precision & ability of magnetic compensato

2.Key components for imported materials

3.32X

4.Objective aperture 42mm

5.Accuracy without micrometer ≤2.5mm

6.IP54 water protection
