Steam Sensor for Arduino UNO R3 Compatible

Feedback Ratings
  • 10-19 Pieces
    US $1.63
  • 20-49 Pieces
    US $1.59
  • >=50 Pieces
    US $1.54
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ALSRobot
Model Number:
RB-02S080A
Place of Origin:
Guangdong, China (Mainland)
Application:
Steam
Material:
PCB

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X3X2 cm
Single gross weight:
0.03 KG
Package Type:
Aluminium foil bag
Lead Time :
2

Description

This steam sensor can be connected to the Arduino IO Expansion shield directly and also XBEE module,Arduino Shield V5.0 to detection it is rain or not.
The sensor can placed outdoors, when the rain dripping on the detection surface,  the output voltage will increase when the humidity of the sensor surface goes up. Arduino UNO will know it is rained, coupled with a MP3 module, you could achieve Music Notifications. In addition to detecting the rain, the fog and moisture also can be detected.

Note:The connector is not waterproof, please be careful not to put the connector directly in water.

Specifications

  • Working voltage: 3.3V or 5V
  • Operating Current: <20mA
  • Operating temperature range: -10 ℃ ~ + 70 ℃
  • Interface Type: analog output
  • Size: 35mm x 23mm
  • Weight: 3g

pictures

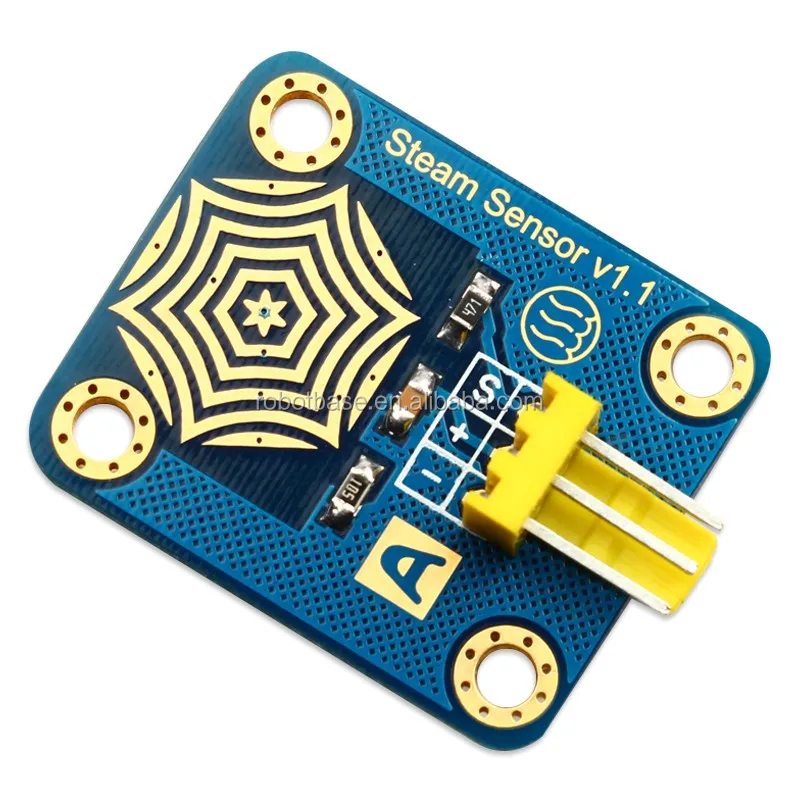

RB-02S080A-Steam Seneor(1)

Zedoary process,Superior quality

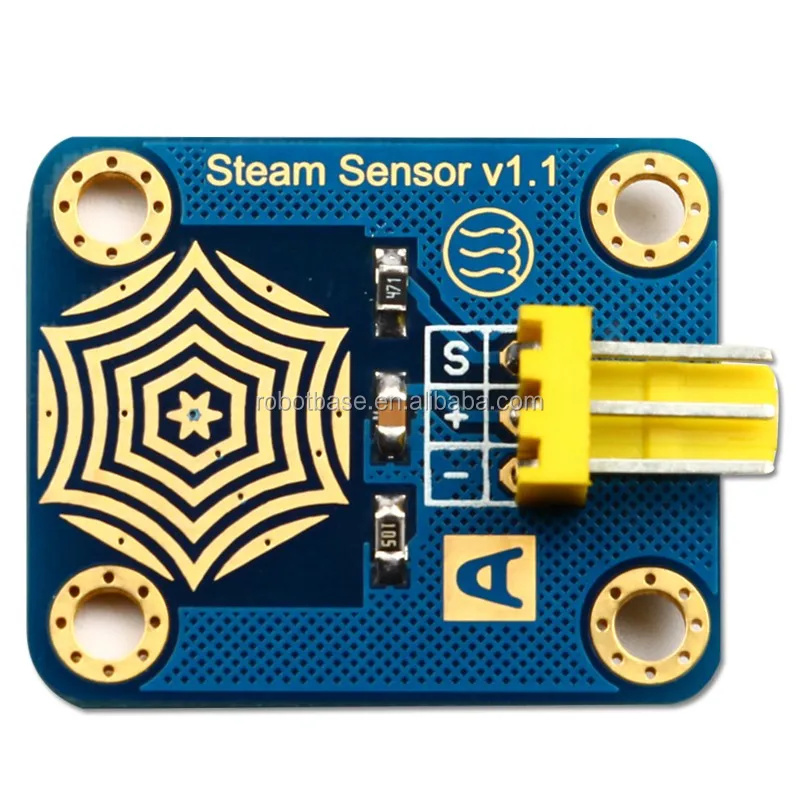

RB-02S080A-Steam Seneor(4)

  Logo clearly,Convenient operation

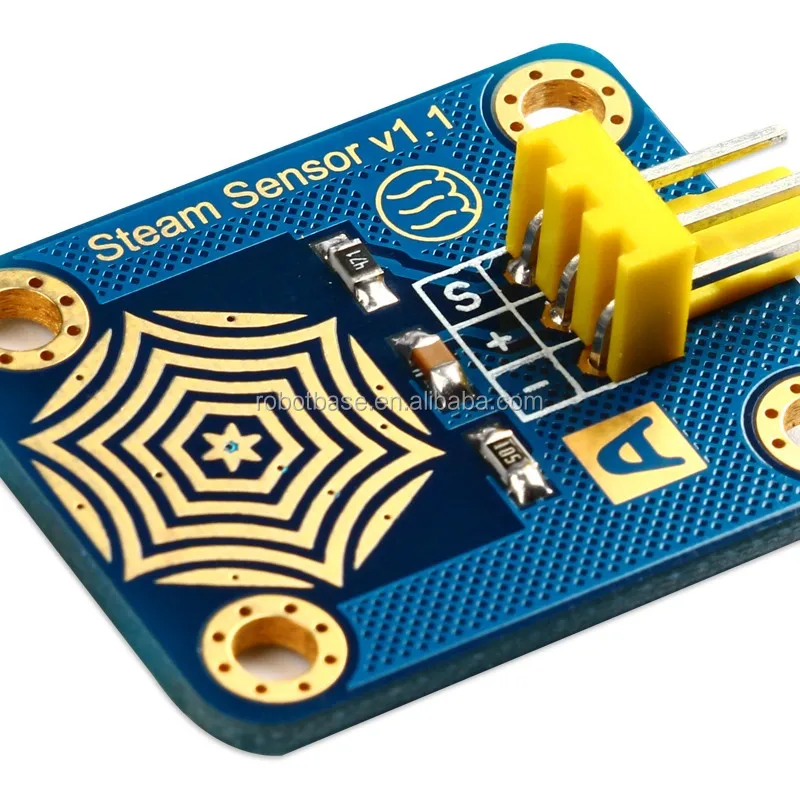

RB-02S080A-Steam Seneor(3)

  Attention to details,More beautiful

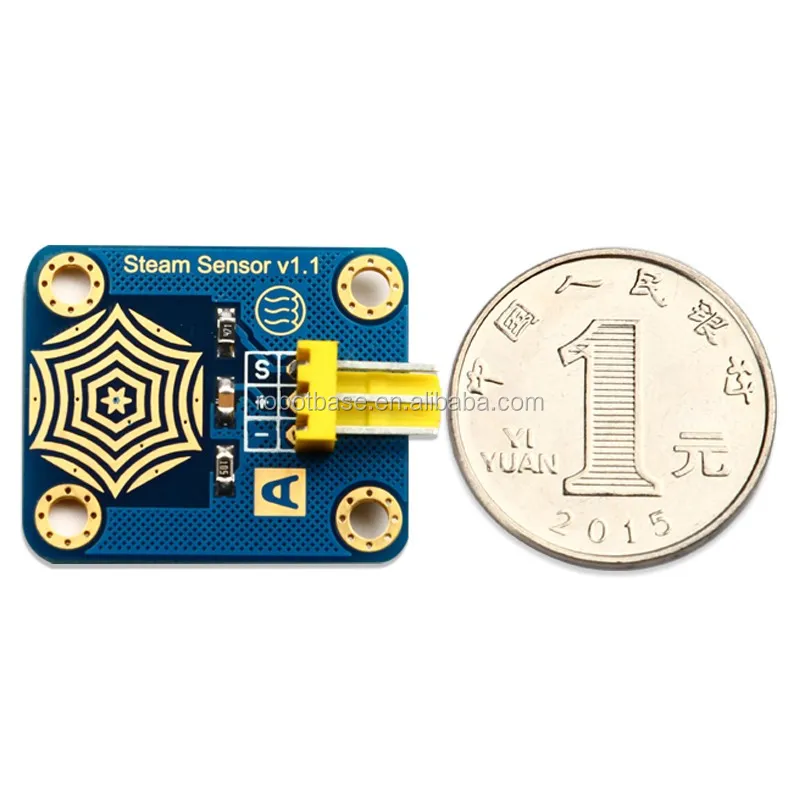

RB-02S080A-Steam Seneor(5)

  Steam sensor compared with coins
