Touch Sensor Module 12 Channel IIC Touch Sensor For Arduino UNO R3 Controller

Feedback Ratings
US $6.35 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S104
Usage:
Arduino Touch Sensor
Theory:
Capacitance Sensor
Output:
IIC
Product name:
Arduino IIC Touch Sensor
Interface type:
IIC
Touch channels:
12
Size:
80mm x 50mm
Weight:
6g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.2 KG
Package Type:
anti-static bag standard box
Lead Time :
2

Description

A new IIC Touch Sensor is also named 12 circuits capacitive touch sensor. I2C touch sensor is based on the  proximity capacitive touch sensor controller of Freescale- mpr121. This sensor can be easily connected to Arduino to detect the touch or proximity of a human finger.IIC Touch Sensor is when a person (or animal) touches any electrode of the sensor and then outputs a different signal to the device that touches the sensor (such as touch panel computer, mobile phone and touch panel appliances). The IIC touch sensor can be used in electronic products that are reflected in human contact, 12 independent touch channels can be supported and touch electrodes sometimes can also sense the indirect contact of the fingers.

Specifications

  • Operating voltage: 3.3V-5.5V
  • Standby current: 2uA
  • Touch channels: 12
  • Interface type: IIC
  • IIC address: 0x5A - 0x5D
  • Size: 80mm x 50mm
  • Weight: 6g

Testing environment:

  • Hardware environment: Carduino, sensor V5.0 extended, ICC touch sensor, LCD12864 rocker extension board
  • Software enviroment: Arduino IDE 1.7.7
  • PIN:
    -:GND
    +:VCC
    SDA:IIC digital signal
    SCL:IIC clock signal

pictures

RB-02S104 Touch Sensor(4)

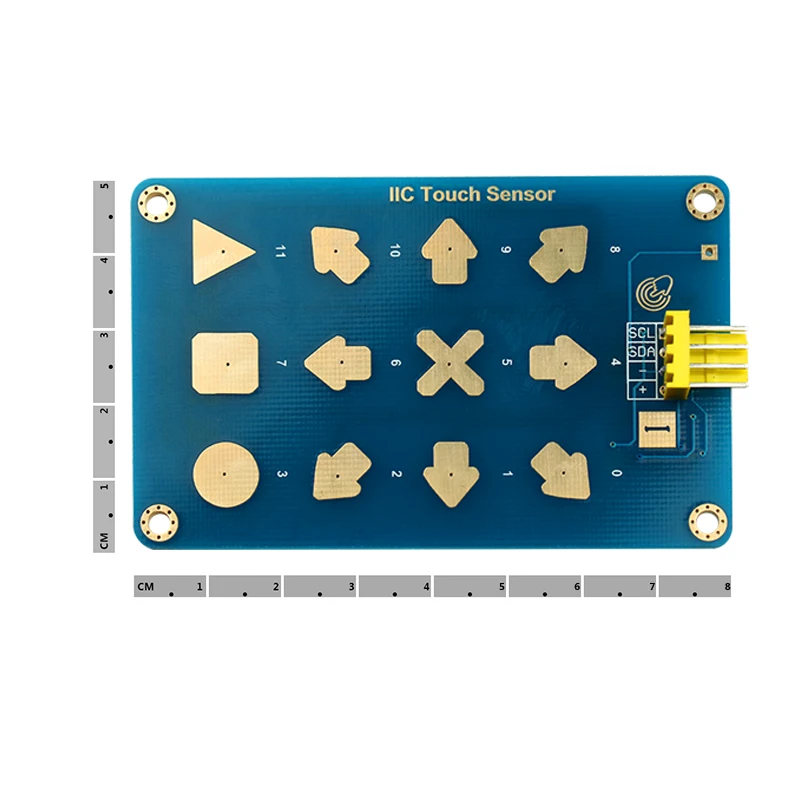

Arduino IIC Touch Sensor Front Side



RB-02S104 Touch Sensor(3)

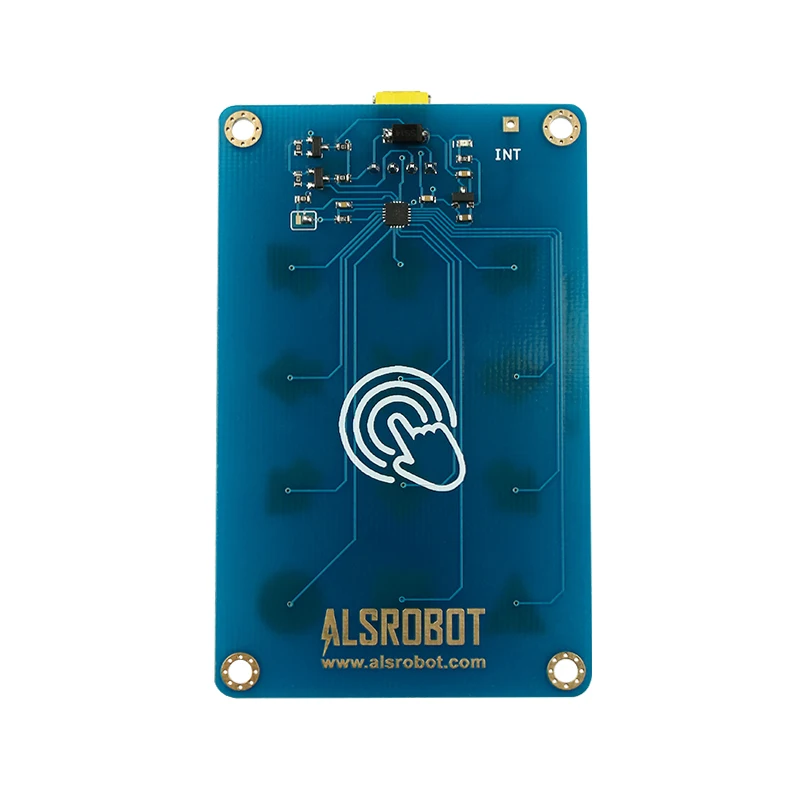

Arduino IIC Touch Sensor Back Side
