UL/DLC/PSE/SAA LED Solar Road Light High Power IP68 led street light 20 watt

Feedback Ratings
  • 1-99 Sets
    US $140.00
  • >=100 Sets
    US $130.00
1 Sets
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Light Source:
LED
Item Type:
Street Lights
LED Light Source:
Bridgelux,Cree
Input Voltage(V):
AC100-240/277V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-40 - +50
Working Lifetime(Hour):
100000
Lamp Body Material:
Aluminum Alloy, ADC12 Die Cast Aluminum Alloy+ 4mm tempeled glass
IP Rating:
IP68
Certification:
BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-L20
Name:
20 watt led street light
reflector:
optional
product size:
650*260*82.80mm
Beam Angle:
140°*120°/120°*80°
THD:
<10%
Power Factor:
0.98
power supplier:
meanwell HLG with protective Aluminum Housing
Warranty:
5 years
G.W/N.W:
11.000kgs/10.00kgs
Specification

UL/DLC/PSE/SAA LED Solar Road Light High Power IP68 led street light 20 watt


Introduction:

1) Unique integrate Die-Cast Aluminum with self- clean feature, enable efficient heat transmit function, effectively increase the life- span of light fixture.
2) Unique Integrated Light distribution system, enable maximization of Light output.
3) With world class quality LED chip and electronic component, enabling reliable quality.
4) High energy saving, energy saving result immediately.

Product Specification
Item No.:
CES-L60
Max Wattage:
60W
Material of Shell:
Die Cast Aluminum,Temper Glass,Anti-Dust,Water-proof,PCB Heat Index 2.0
Work Temperature:
 -40℃ to 50℃ (Rated at T6 @ Max 25° C)
Product Size:
650*260*82.80mm
Reflector:
Optional
Beam Angle:
140°*120°/120°*80°
IP Rating:
IP68
LED  Specification
LED Brand:
60pcs bridgelux
Lumens:
6000lm
Lumens/W:
100lm/w
CCT:
6500k
Power Specification
Input Voltage:
AC100-240/277V
Power Factor:
98%
THD:
<10%
Power Brand:
HLG Meanwell driver with protective Aluminum Housing

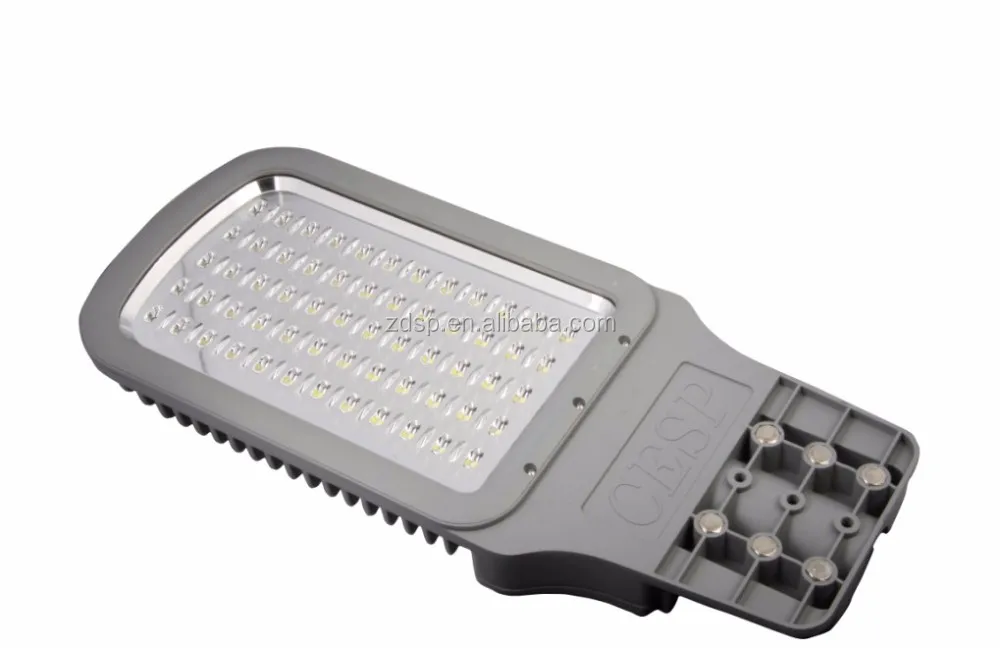

Structure&Outlook

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

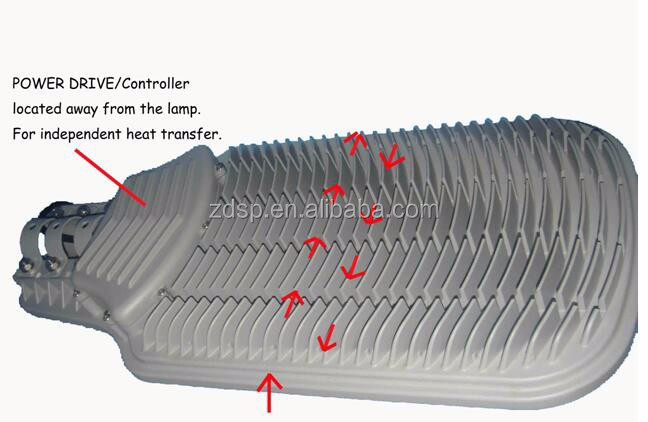

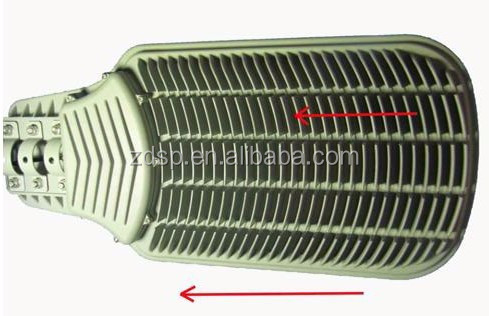

Self clean function

Radiator is designed to be Curved Fin Shape to ensure easy flow of air.

Surface of the Lamp fixture is sprayed with unique paint material.
This material, not only assists in heat transmission to surrounding air, it also prevent dust and any other particle to accumulate or stay on the surface of the lamp fixture.
Combined with the design of the radiator, this results in self clean fixture.


Heat is transmitted upwards, then transferred to the surrounding air, effective structure for the heat to dissipate from the LED. Hence ensuring long lifespan.


The whole lamp shape is angled, therefore, any residue such as dirt or others will wash away during rainfall. Hence making our design self cleaning, resulting in no blocking of the heat sink, ensuring long life span


IP68 Protection Grade

Ingress Protection Grade : IP68 (highest protection grade for waterproof and dustproof).
This is achieved thru materials used and unique design of the water proof body.


Water proof Silicon: Top quality rubber with anti-low aging and burn-proof characteristic

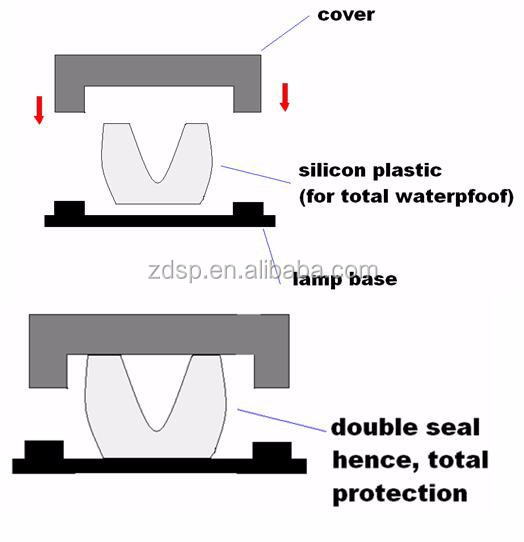

Design of the water proof system on our fixture.


Total water protection

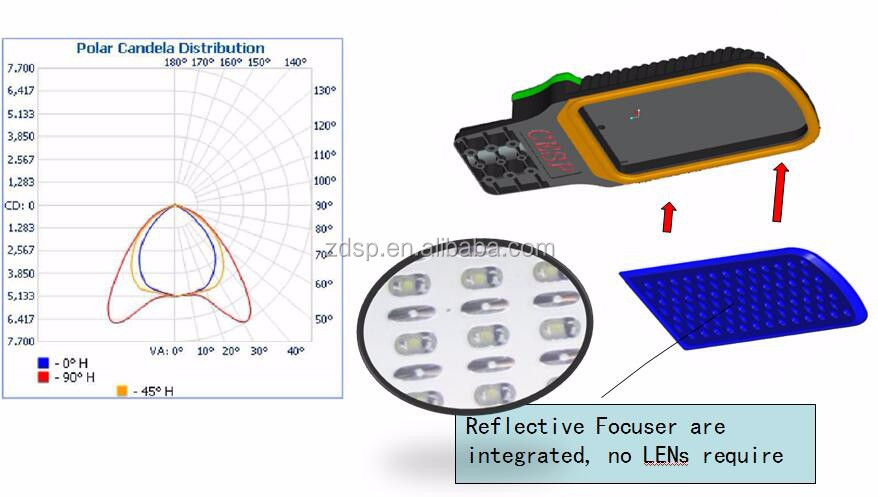

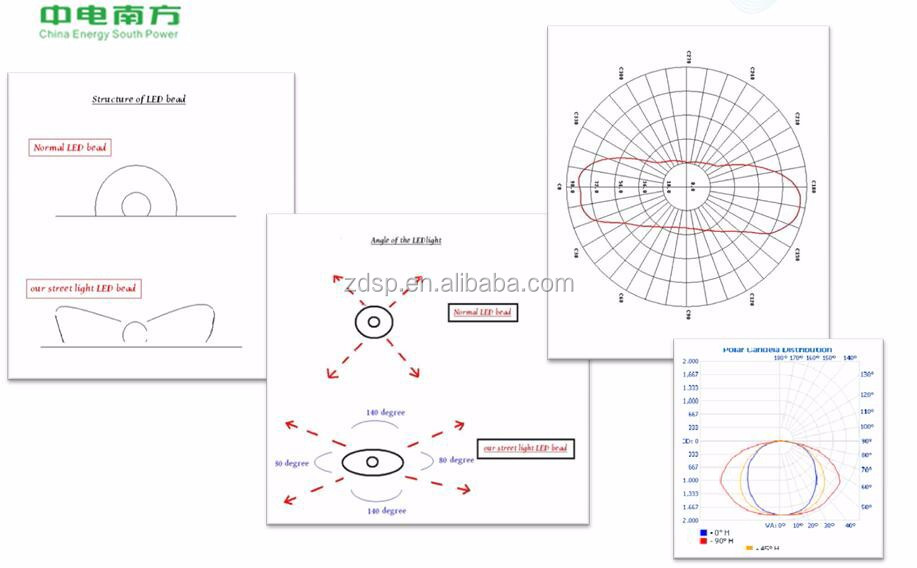

Photometric design

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

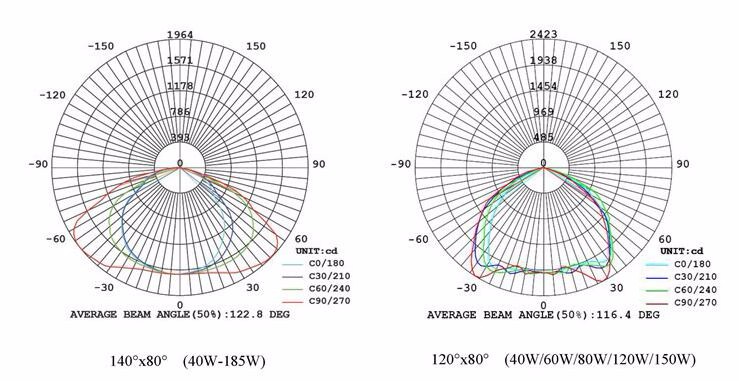

Wide angle series,the beam angle will be 140°*120°

             Reflector Series, beam angle will be 120°*80°

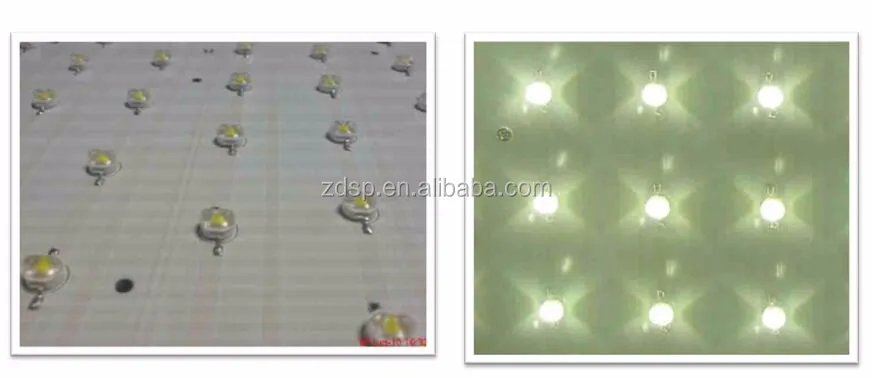

Reflector Series

Reflective focuser Integrated to LED chip, therefore, secondary LENS is not needed to adjust angle.
In other word, no further initial light lost due to secondary LENS.
Integrated Reflective focuser’s angle on LED chip are 120°x 60°,(whole lamp angle : refer IES) which is designed to illuminate wide area and suitable for road lighting.
As a result, able to reduce the wattage of light fixture needed to illuminate the same area.

wide angle series

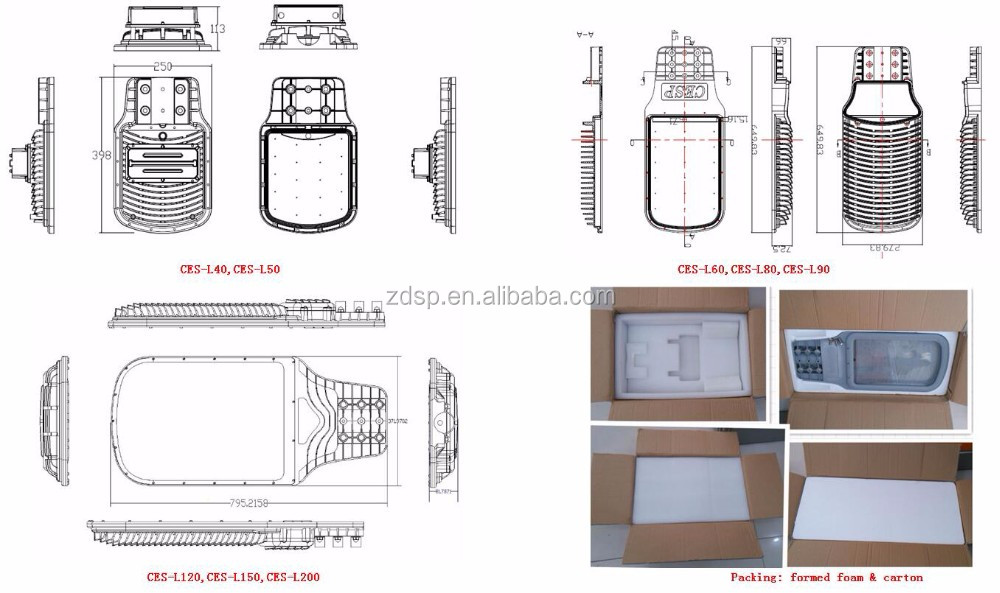

Package Information
Item
Product Size(mm)
Packing Size(mm)
G.W. / N.W.(kgs)
CES-L30,CES-L40,CES-L50
400*250*65mm
470*310*200mm
6.50kgs/5.50kgs
CES-L50S/60,CES-L80,CES-L90
650*260*82.8mm
710*360*200mm
11.00kgs/10.00kgs
CES-L120,CES-L150,CES-L200
795*372*82.80mm
860*450*160mm
14.50kgs/13.00kgs

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

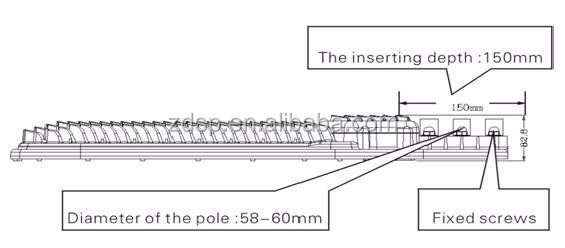

Installation Process

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

CES-L Series:
1. Insert the lamp into pole.
2. Position the lamp direction and fixed screw into lock position.
3. Fixed screw into lock position,The torque of applied to the screw/bolt is 1.08 kg.m
4. Place the lamp cord into the pole; connect the wire to local power supply (AC100-277V).

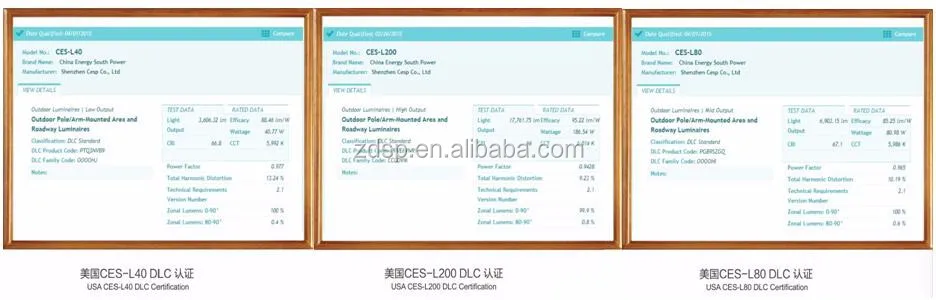

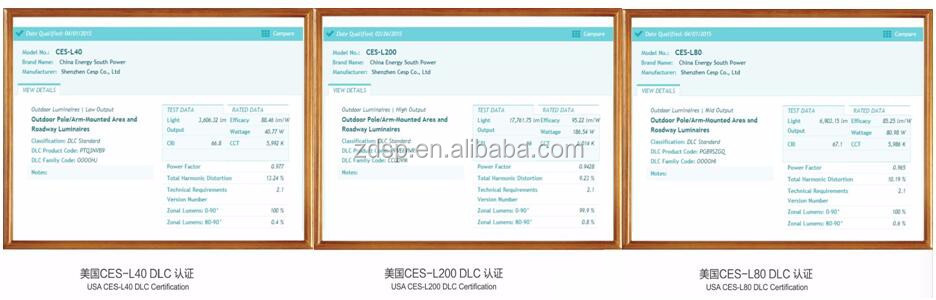

Certifications

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

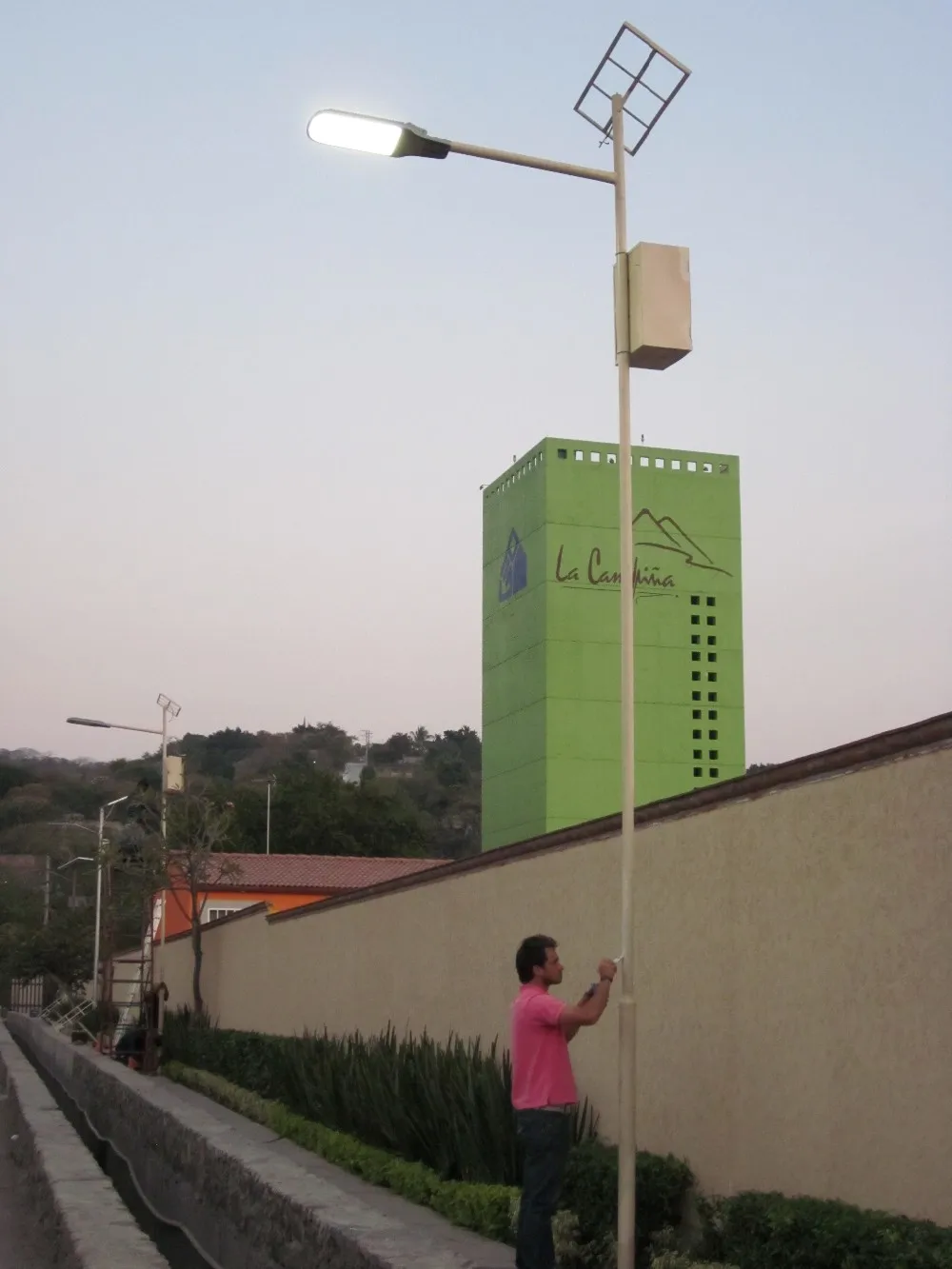

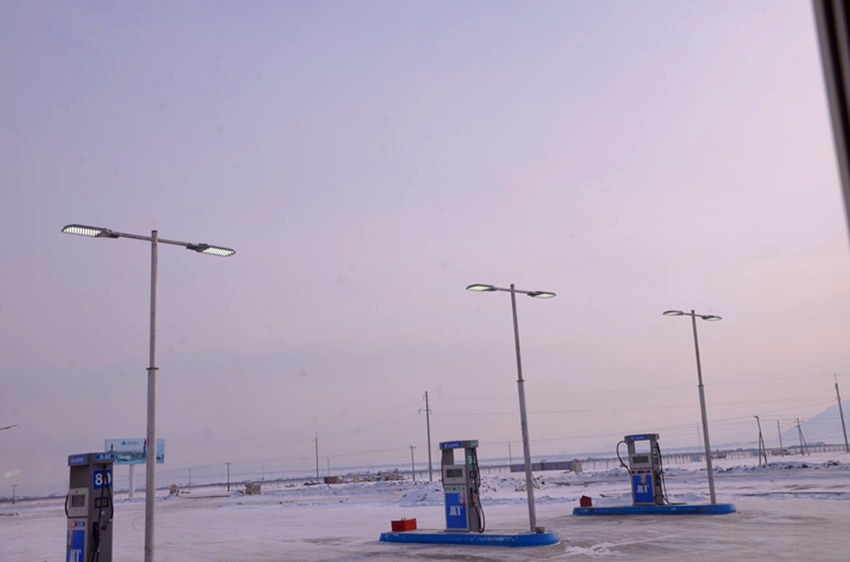

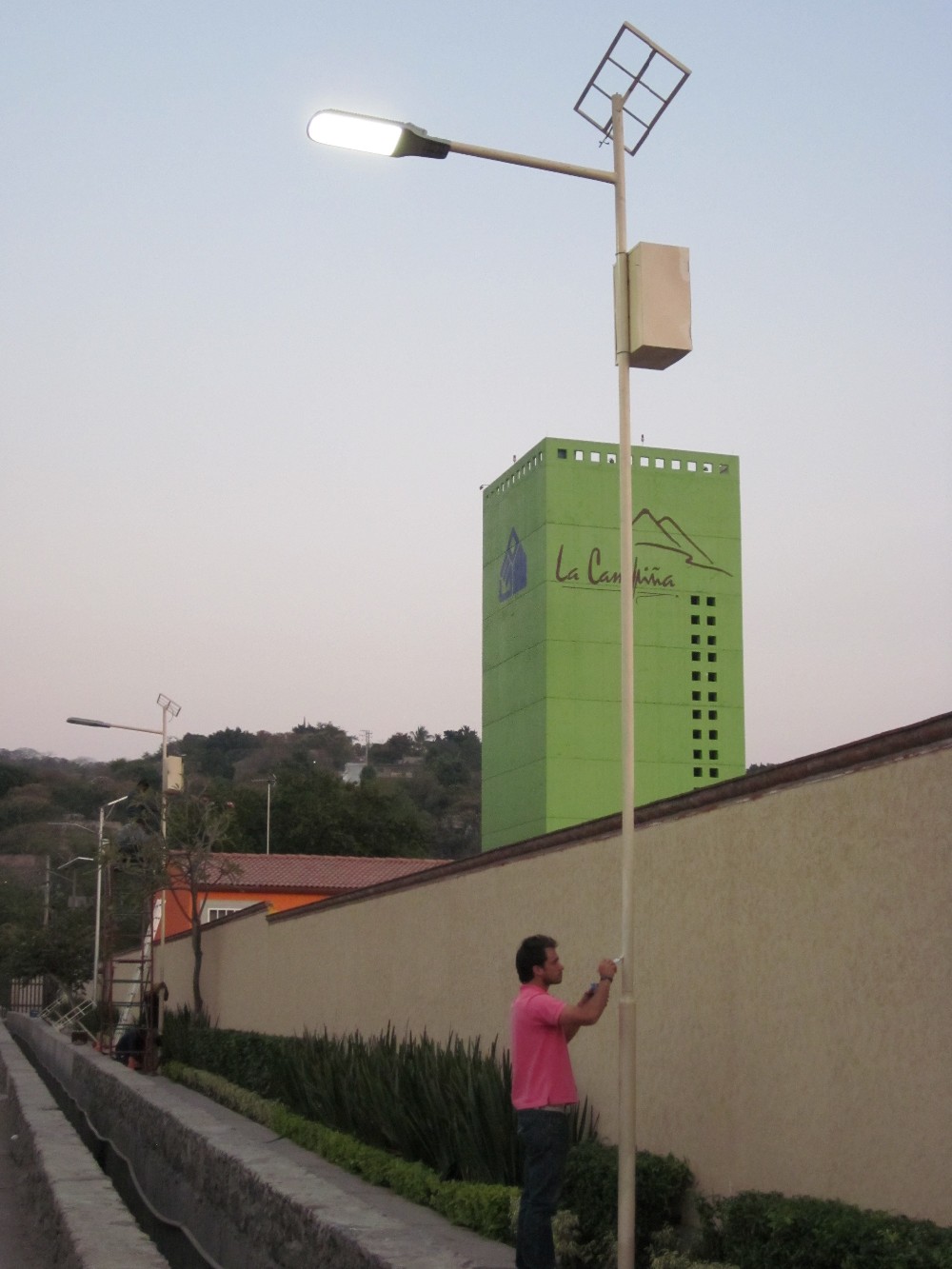

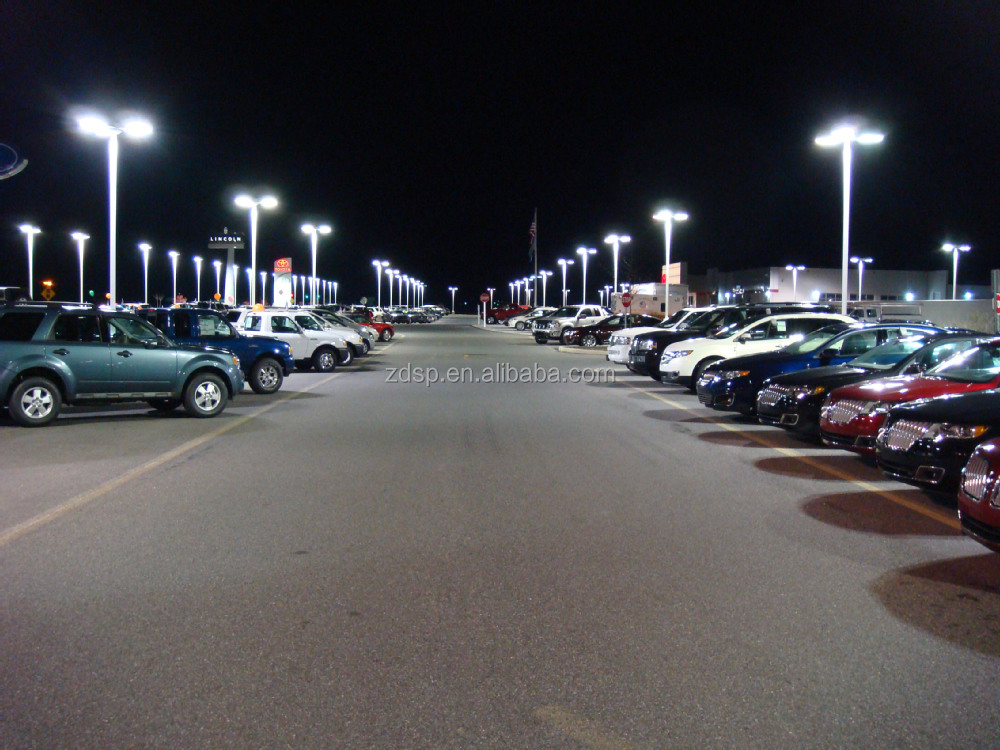

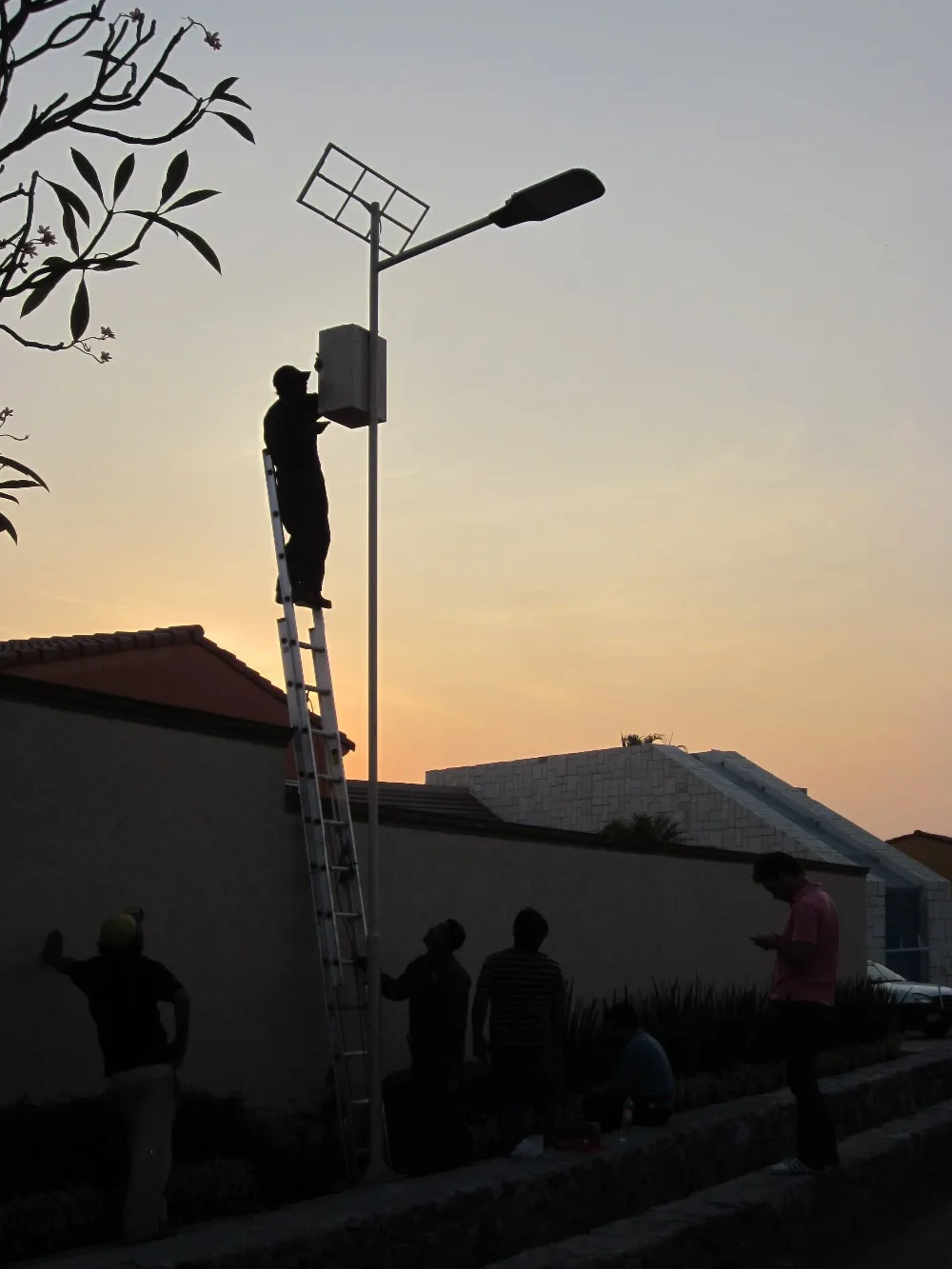

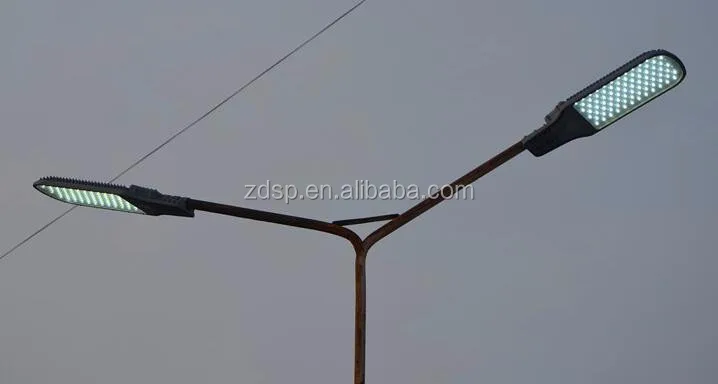

Successful Cases

LED Solar 60W 90W 120W 150W Road Light Street lights High Power IP68 Street Lights

Company Information

Company Intro:

            Shenzhen Cesp Co., Ltd (formally ChinaEnergy South Power Equipment (Shenzhen) Co., Ltd), is a national high-techenterprise. With registered capital of 50 Million RMB, and subsidiary company in Dongguan, Shenzhen CESP Equipment (Dongguan) Co., Ltd, China's largest production base for Explosion Proof Lighting Fixtures, with 4 specialized production lines and aging facility for the Explosion Proof LightingFixtures and more than 20,000 square meters of modern manufacturing facility, 200production workers and a series of Specialize Equipment, including Injection Molding,Cast Aluminum facility, Intelligent Vacuum Detection Facility for Waterproofing test, Photometric Tester for IES, Hi-Temperature Simulated Facility, Salt Spray Corrosion Facility Vibration Testing Facility, Lightning Protection Testing Equipment, Dust-proof & Oil-proof Testing Equipment, as well as other Advanced Detection Equipment.
          Shenzhen Cesp Co., Ltd had passed the ISO9001Quality System Certification and ISO14001 Environment System Certification. ShenzhenCesp Co., Ltd is also one of China's National High tech Enterprises, with Chinese Explosion-Proof Certification; CNEX, European Explosion-Proof Certification;ATEX and CE, ROHS certification. North American HazLoc Certification (UL844,Class 1 Div 2), UL, CUL, DLC, ETL, CETL, LM80, LM79 certification. Australia SAA, C-Tick Certification.

Service CESP provides:
1) Before and after sales in time service 7/24.
2) Professional Lighting solution suggestions, dialux/oyxtech simulation available.
3) Payment terms: Paypal, TT, LC, DP etc.
4) Shipment terms: FOB, CIF, CFR
5) Short Lead time: 5-7 working days for sample order and orders less than 100units.
6) NO MOQ required, sample testing welcome.
