UL844 DLC IECEX Certified Ex Proof LED Lights 30W 100W 180W IP67 Explosion Proof LED Lights

Feedback Ratings
  • 1-99 Pieces
    US $268.00
  • 100-499 Pieces
    US $255.00
  • >=500 Pieces
    US $241.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Light Source:
LED
Item Type:
Explosion-proof Lights
LED Light Source:
Bridgelux,Cree
Input Voltage(V):
AC100-277V
Lamp Power(W):
180
Lamp Luminous Flux(lm):
20700lm
Lamp Luminous Efficiency(lm/w):
115
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-40 - 48
Working Lifetime(Hour):
50000
IP Rating:
IP68
Certification:
C-tick, CCC, CE, CQC, EMC, FCC, LVD, PSE, RoHS, SAA, UL
Emitting Color:
Cold White
Base Type:
3/4 NPT
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-J200
Lamp Body Material:
ADC12 Die Cast Aluminum Alloy+ 4mm tempeled glass
Reflector:
White reflector
Beam Angle:
120°*120°
Power Factor:
0.98
THD:
<10%
Driver:
meanwell HLG with protective Aluminum Housing
product size:
400*400*185mm
package carton size:
460x460x240mm
G.W/N.W:
12kgs/11.50kgs
Warranty:
5 years
Specification

UL844 DLC ATEX IECEX 180w LED Explosion Proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w

Product Specification
Item No.:
CES-J200
Max Wattage:
180W
Material of Shell:
Die Cast Aluminum, Temper Glass, Anti-Dust, Water-proof, PCB Heat Index 2.0
Work Temperature:
 -40℃ to 48℃
(Rated at T5 @ Max 25° C)
Housing Color:
Yellow, Grey, Customized
Product Size:
400*400*185
Reflector:
No; White; Silver
Beam Angle:
120°*120°
IP Rating:
IP68
LED  Specification
LED Brand:
Bridgelux 156 pcs LM80 Certify
Lumens:
20700
Lumens/W:
115lm/w
CCT:
3000-6500k
Input Voltage:
AC100-240/277V
Power Factor:
98%
THD:
<10%
Power Brand:
HLG Meanwell driver with protective Aluminum Housing

Key features:

1) Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
2) Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
3) IP 68, highest rating of protection.
4) Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5) 5 year warranty.
6) Best driver: Meanwell HLG driver.

7) With the fullest anti-explosive certification,including UL844, DLC latest 4.2Version for North America, Atex for Europe and CNEX for China.

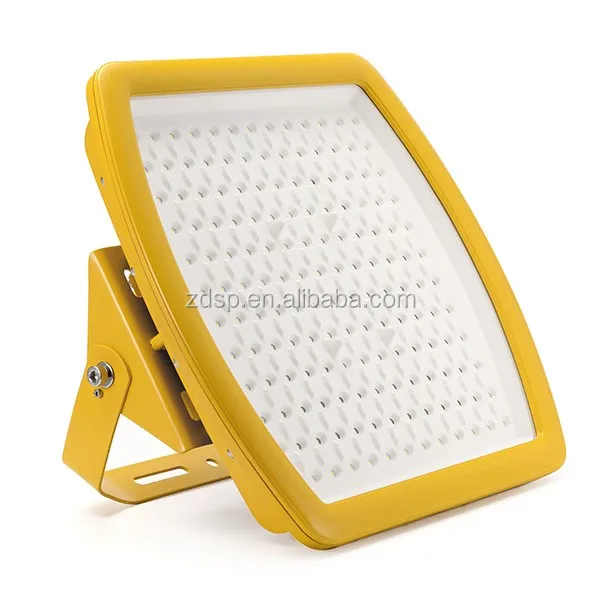

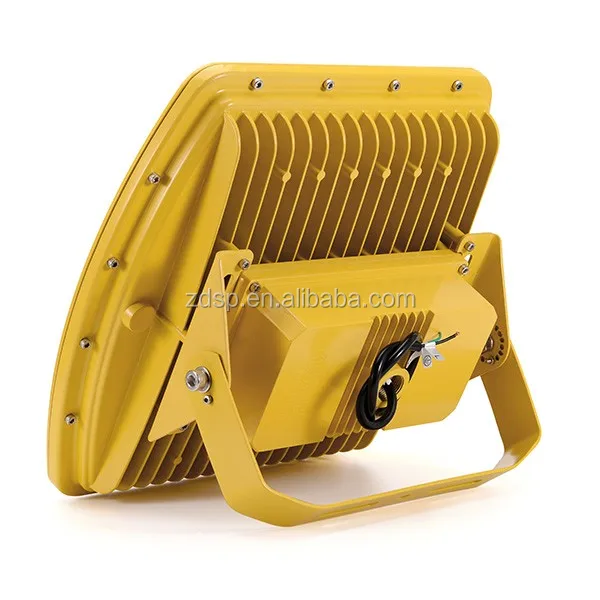

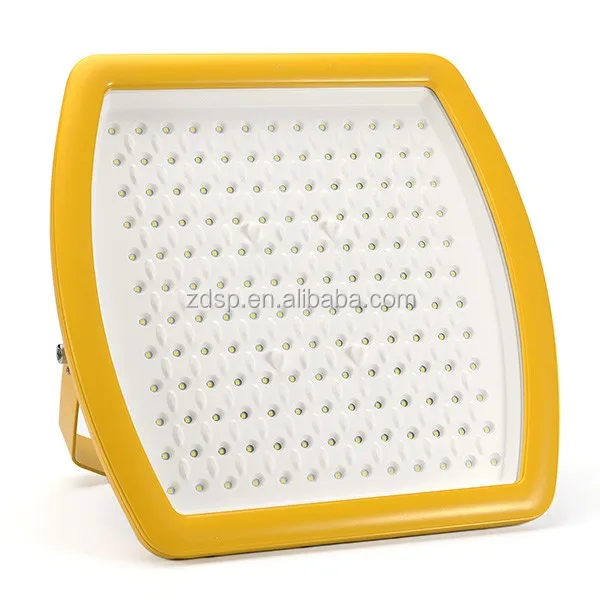

Products Pictures

UL844 DLC ATEX IECEX 180w LED Explosion proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w

Production Lines in our workshop:

UL844 DLC ATEX IECEX 180w LED Explosion proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w

Package Information
Item
Product Size(mm)
Packing Size(mm)
G.W. / N.W.(kgs)
CES-J20, CES-J40s
200*200*270mm
360x250x200mm
4.5kgs/4.0kgs
CES-J60,CES-J80,CES-J100
300*300*175mm
370x370x240mm
8.5kgs/7.5kgs
CES-J120,CES-J150,CES-J200
400*400*185mm
460x460x240mm
12.5kgs/11.5kgs

UL844 DLC ATEX IECEX 180w LED Explosion proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w

Installation Process

1. U-bracket(M10 screws needed)

2. Adjustable Wall / Celling Mount (M10 screws needed)

3. High Bay Mount Hook

4. Recessed Mount holder

UL844 DLC ATEX IECEX 180w LED Explosion proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w

Applications

UL844 DLC ATEX IECEX 180w LED Explosion proof flood light IP68 rating 5 years warranty Gas Station LED Canopy Lights 30w 40w 60w 80w 100w 120w 150w 180w.

Airport, gas station, petrol station, army base, led ightings, chemical, natural gas, coal miming, military, aerospace, oil&chemical processing&storage, warehouse, offshore oil mining use led anti-explosive fixture.

Successful Cases

Inner Mongolia-China Petro

Australia- gas station 120w to replace 400W HPS

Compressed Natural Gas Station in Indonesia

                 Greece-kkoil gas station

                            Singapore factory

USA gas station CES-J60

Outer Mongolia petrol station

Henggang gas station in Shenzhen China

Certifications

Europe market: CE, RoHS, Atex;

North American/Canada market: UL844, DLC, LM79, LM80;

Japan market: PSE;

Australia market: SAA, IECEX; C-tick;

China market: CCC,CQC,CNEX.
