Water Leakage detected controler with on/off Valve (W20-S2-A)

Feedback Ratings
  • 1-499 Sets
    US $45.00
  • >=500 Sets
    US $40.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Straight Through Type
Pressure:
Medium Pressure
Power:
Electric
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
3/4"
Place of Origin:
China (Mainland)
Model Number:
W20-S2-A
Brand Name:
Tonhe
Rated Voltage:
DC3V
Life Time:
70000 Times
Protection Class:
IP67
Certification:
CE, NSF61

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X12X9 cm
Single gross weight:
1.0 KG
Package Type:
carton
Lead Time :
3

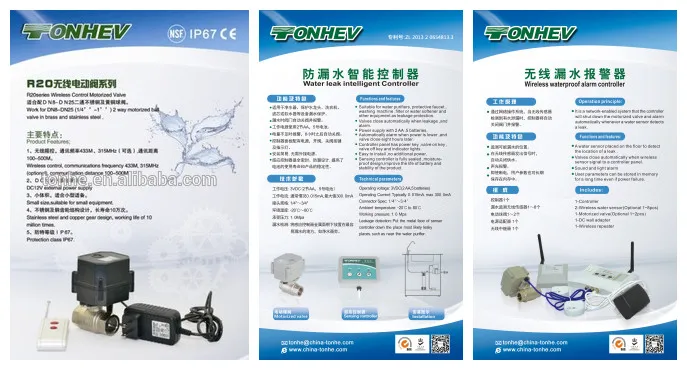

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/2”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .



 4





Design Features



1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.

2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance

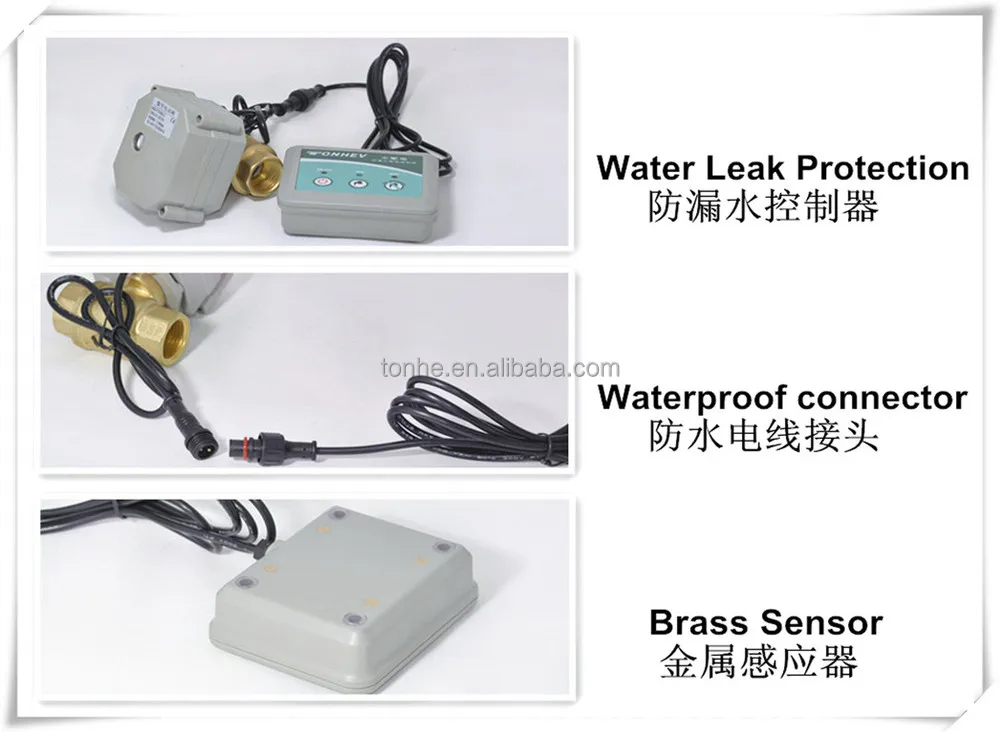

3 .jpg





For occasions



1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection.







Technical Parameters:



Valve size -------------------  1/2” - 1” (Optional)

Valve Body material -------  Stainless steel

Actuator material ----------  Engineering Plastics

Sealing material ------------  EPDM & PTFE

Rated voltage --------------  DC3V



Working current -----------  ≤500MA

Protection class  -----------  IP67



Open/close time    --------- ≤7 S

Actuator rotation  ---------- 90°

Max. torque force  --------- 2Nm

Indicator   ------------------ Yes



Maximum working pressure --------- 1.0MPa

Circulation medium -------------------  Fluid, Air

Environment temperature ----------  15℃~50℃

Liquid temperature ------------------   2℃~90℃



wireless



Work Shop:

electric actuator valve

Customer Show:

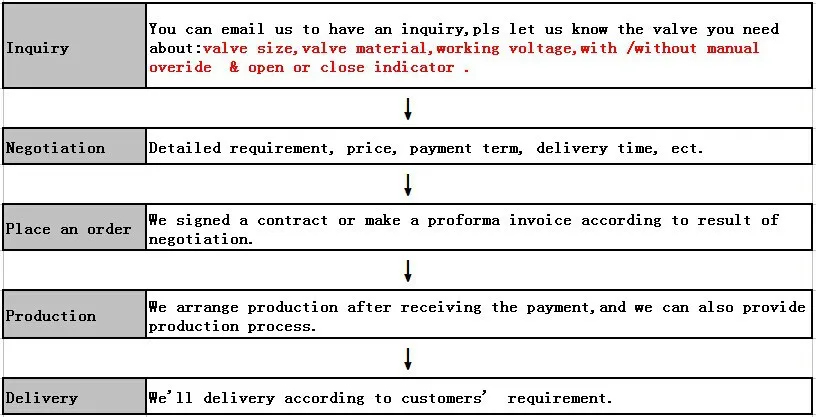

Business Steps:











Packaging Details
