WiFi Single-band 1X1 2.4ghz 1T1R RDA5995 usb wifi module 150mhz wireless module

Feedback Ratings
  • 1000-4999 Pieces
    US $1.50
  • 5000-9999 Pieces
    US $1.30
  • >=10000 Pieces
    US $1.20
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
2195E-U
power voltage:
3.3Vdc
WIFI Standard:
IEEE802.11b/g/n
Operating Frequency:
2.4G: 2.4000GHz~2.4835GHz
Host Interface:
USB
DATA Rates:
150Mbps
Antenna:
External Antenna
Security:
WEP,TKIP,AES,WPA,WPA2
OS Support:
Android /Linux/XP/WIN7
Dimension:
L13*W12.2
Main Chipset:
RDA5995
Note

Respected customers ,thank you for your interest in our product! Before placing the order please contact our sales staff to confirm inventory.
Detailed specifications docs,please download form the official website.
skype:15982299436

Product Introduction

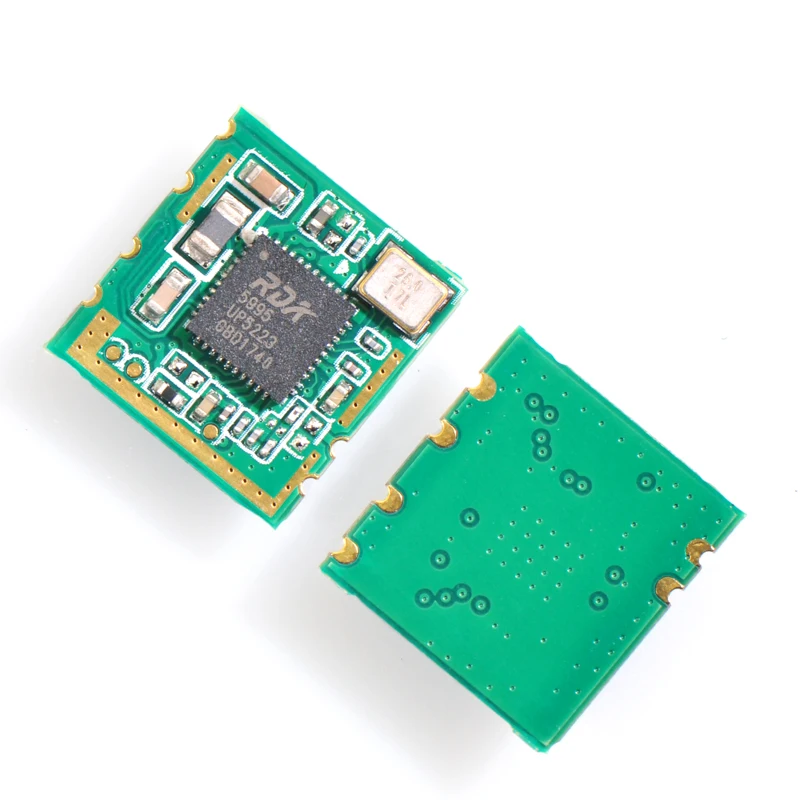

2195E-U is a small size and low profile of WiFi module, board size is 12.2mm*13mm with module thickness of 1.7mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11b/g/n MIMO technology.2195E-U uses highly integrated WiFi single chip based on advanced COMS process.2195E-U integrates whole WiFi function blocks into a chip, such as USB, MAC, BB,AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.

Features

 Operate at ISM frequency bands (2.4GHz)
 USB for WiFi
 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d,IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
 Enterprise level security which can apply WPA/WPA2 certification for WiFi.
 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Application range:

OTT/IPTV/DVB/STB
Smart doorbell
VR/AR terminal
Printer /POS machine / electronic said
Vehicle mounted front / rear terminal
Toys
Lighting lamps / intelligent street lamps
Smart home appliances / appliances
Instrument and meter (water, electricity, gas)
Smart city and other consumer electronic products
Smart phones
Portable devices

Detailed parameters
Model No
2195E-U
Main Chipset
RDA5995
WIFI/BT Interface
USB
WIFI Standars
EEE802.11b/g/n
DATA Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Android /Linux/XP/WIN7
Operating Frequency
2.4
Operating Voltagc
3.3V
Dimensions
L x W : 12.2x 13.0
RF Chains
1T1R
Operating temperature
-20°C to 70°C
Storage temperature
-40°C to 125°C
