XCY Mini ITX motherboard Intel J1900 8gb ram X86 fan mainboard Mini PC Win10 board with LVDS

Feedback Ratings
$67.00 / Unit | 1 Unit (Min. Order)
Model Number:
J1900
$67.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Ports:
Display Port, Ethernet, SATA, USB 2.0, USB 3.0, VGA, WiFi, Bluetooth, 4 x USB 1x VGA 1x HD
CPU Type:
Intel
Chipset:
Intel Celeron J1900 Quad core
Maximum Ram Capacity:
8GB
Products Status:
Stock
Application:
Laptop
Chipset Manufacturer:
Intel
Socket Type:
ONBOARD CPU
Form Factor:
Mini-ITX
Memory Type:
DDR3
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA
Brand Name:
XCY
Place of Origin:
Guangdong, China (Mainland)
CPU:
Intel Celeron Processor J1900
Graphics Card:
Intel HD Graphics
Memory:
DDR3L, 1.35V, 1 socket
WIFI:
802.11b/g/n
SSD:
support mSATA and 1*2.5inch SSD
Operating System:
Win 7/Win 8/10 Linux/ pfense
Size:
17*17cm
Cooling System:
Cooling fan

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 kg
Lead Time :
Quantity(Unit) 1 - 1 2 - 500 >500
Est. Time(days) 8 6 To be negotiated
Customizable

We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:

☑ Logo(Packing , Computer Logo)                               ☑ Computer Colors
☑ Security                                                                                ☑ Interfaces Customization
☑ Virtualisation                                                                    ☑ And so on...
☑ Data Protection


For more information, Pls leave email.

Product Description
  Specification

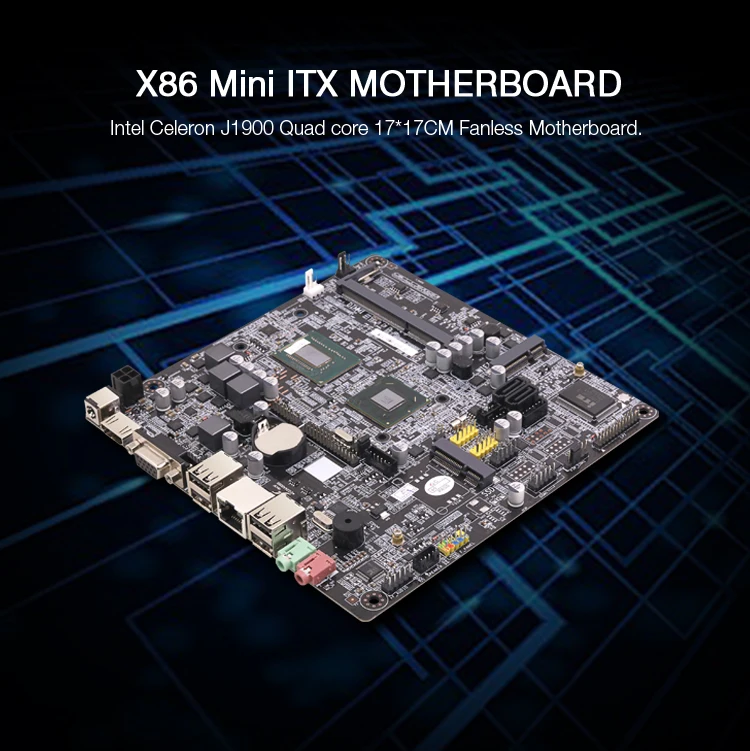

Onboard CPU
Intel Celeron J1900 4 core 2.0Ghz (Fanless)
Bios
AMI,Support Wake on LAN,Auto Power ON,ACPI,PXE Boot,Virtualization
Memory
1* SO-DIMM Solt
Support DDR3L 1333/1600, 1.35V
Max support up to 8GB Memory
Hard Disk
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics
Intel HD Graphics
(Base Frequency 688 MHz,Max Dynamic Frequency 854MHz)
Audio Card
high Definition Audio ControllerA

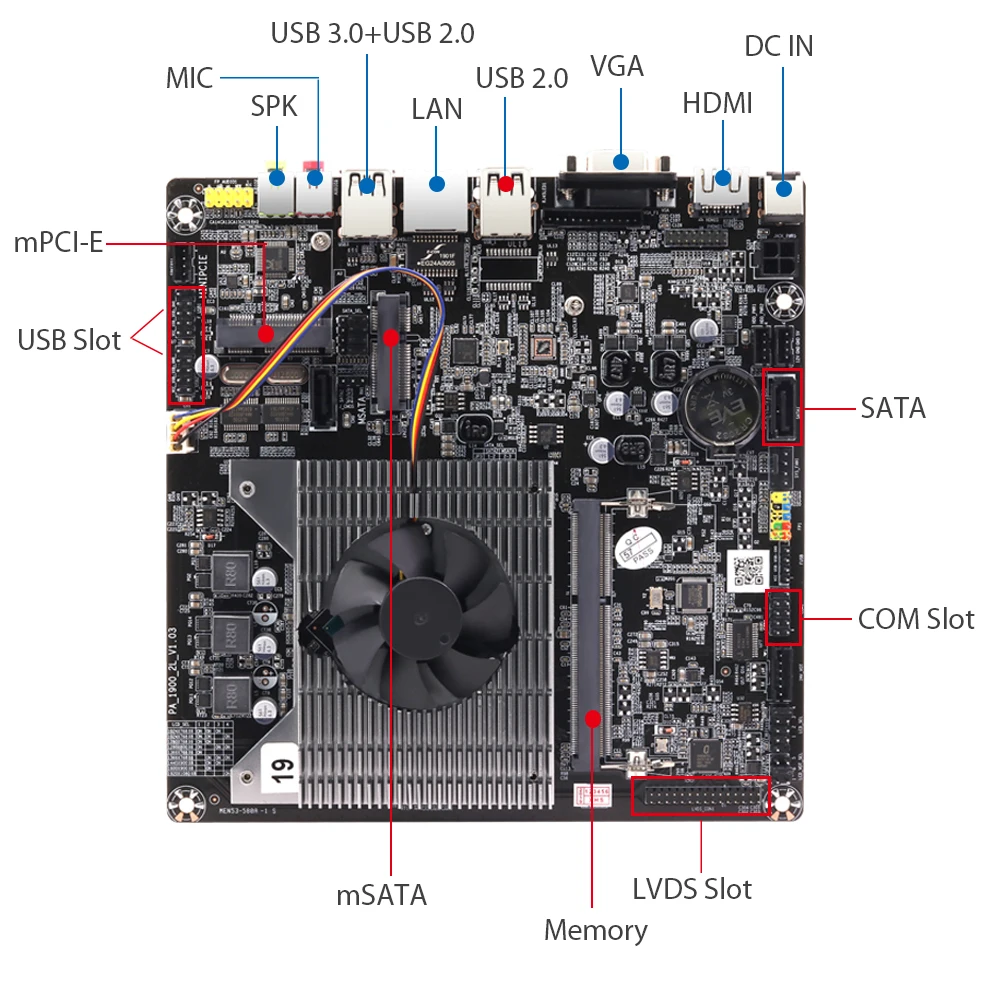

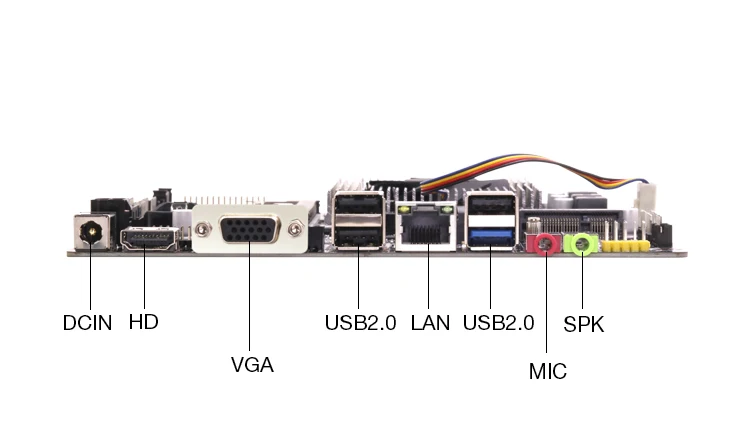

I/O Ports
1*USB 3.0
3*USB 2.0
1*HD
1*VGA
1*LAN

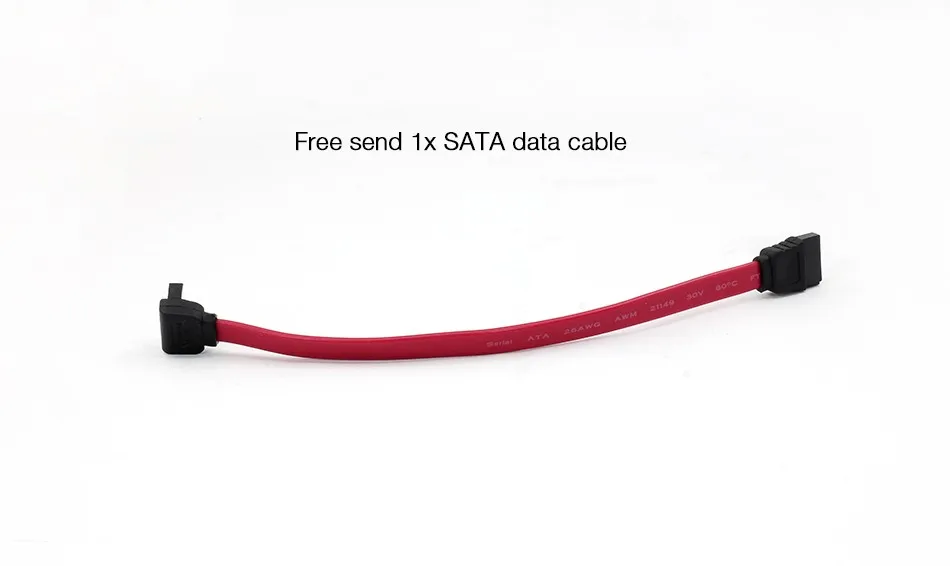

1*SATA (Free send 2*SATA Data cable and 2 pin SATA Power cable)
1*mSATA
1*LVDS Slot
1*RAM Socket
1*SPK 3.5mm
1*MIC 3.5mm
1*DC IN 12C/5A
1*Mini PCI-E Half WIFI socket

Operating System
Support Windows 7/8/10, Linux, Pfsense etc
RAM(optional)
2GB / 4GB / 8GB DDR3L SO-DIMM
SDD/HHD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
Power
DC12V5A
Relative Humidity
10%~90% (non-condensing)
Dimension
12*12CM
Package Content
1x Motherboard
1x Power adapter(Optional)
Packing & Delivery

Payment:
we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"


Packing List:
Normally we use the carton box, 20pcs per carton, the size is :L 49*W 43*H 21CM.
1 x Motherboard
1 x Power adapter(Optional)
1 x WiFi modlue with dual antennas(Optional)

1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual

Power adapter type:

Delivery :

we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,We will choose the right logistics according to your country.

Our Company
Contact us
FAQ

Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.

Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.

Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).

Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc.  Some model is support XP, such as C1037U,Core CPU is not support XP.

Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
