XCY Mini Thin Client New X30 J1900 2.0GHz Quad-core Computer For Living Room 5*USB Window 8 Support Vesa Mount

Feedback Ratings
  • 1-9 Units
    US $100.00
  • 10-98 Units
    US $95.00
  • 99-199 Units
    US $90.00
  • >=200 Units
    US $85.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Memory Capacity:
No
Hard Drive Capacity:
No
Graphics Card Type:
Integrated Card
Display Type:
CRT
Widescreen:
No
Optical Drive Type:
No
Processor Main Frequency:
2.0GHz
Brand Name:
XCY
Model Number:
X30-J1900-1
Place of Origin:
Guangdong, China (Mainland)
Processor Number:
J1900
Cores:
4
Threads:
4
Processor Base Frequency:
2 GHz
Burst Frequency:
2.42 GHz
TDP:
10 W
Max Memory Size:
8 GB
Memory Types:
DDR3L 1333
Processor Graphics:
Intel HD Graphics
Graphics Max Dynamic Frequency:
854 MHz
Product Description
XCY Mini Computer X30 J900 Specification
Onboard CPU
Intel Celeron Processor J1900
(Quad-Core 2 MB L2, 2.00GHz, up to 2.42 GHz)
Memory
1* SO-DIMM Solt
Support DDR3L 1333/1600 MHz, 1.35V
Max support up to 8GB Memory
Hard Disk
Supports 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD
Integrated Graphics
Intel HD Graphics
(Base Frequency 688.00 MH,Max Dynamic Frequency 854.00 MHz)
Onboard LAN
1 x Intel I211-AT- 10/100/1000 Controller
Audio Card
Realtek ALC662 HD Audio CODEC
Front-Panel Connectors
• Power on/off
• 4 x USB 2.0 Ports
• 1 x USB 3.0 Port

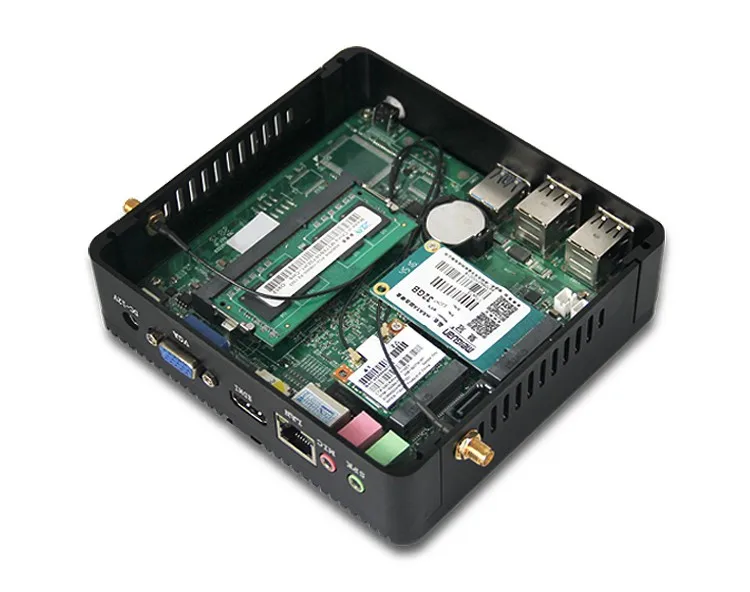

Internal Connectors
• 1 x Mini pcie port (only for mSATA SSD)
• 1 x Mini pcie port (only for WIFI, only for USB singal)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper

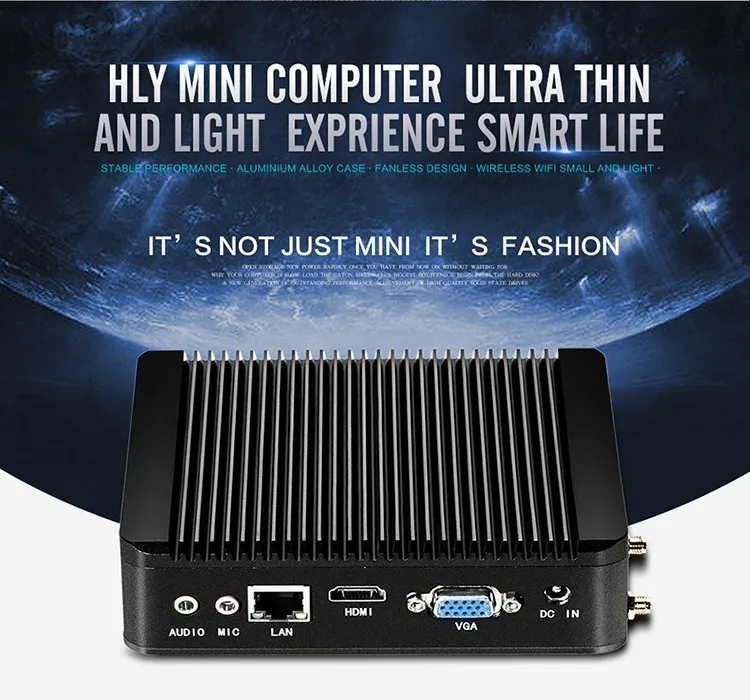

Back-Panel Connectors
• 1 × DC 12V input
• 1 x RJ-45 Ports
• 1 x VGA Port
• 1 x HDMI
• WIFI (option. only for USB singal)
Operating System
Support Windows 7/8/10, Linux, etc
RAM(optional)
2GB / 4GB / 8GB DDR3L SO-DIMM
SDD/HHD(optional)
8G/16G/32G/64G/128G/256G/512G mSATA SSD
500G / 1TB 2.5 HDD
WiFi
RT3070, USB Signal (150M)
Power Consumption
TDP 10W
Case Color
Black silvery gold(Other Color Can Be Customized)
Power
DC100-240V AC/50-60Hz
Operating Temperature
(-10°C~70°C )
Storage Temperature
(-20℃-80℃)
Relative Humidity
10%~90% (non-condensing)
Dimension
13.3x12.5x4 cm
Gross Weight
1~1.35kg
Package Content
1x Mini PC
1x Power adapter
2x Wifi Antennas
1x Bracket(with screws)
Detailed Images

Mini PC Design: achieve the beauty of great master picture processing stable operation, With Rich Interface Design meet your all requirement, Small Body, save space for you, The convenient mini PC bring you high quality life.

110 thousand run point, which is a bit faster
The Intel Celeron Processor Bay Trail on-board J1900 processor 2.0Ghz, integrated Intel HD Graphics,Graphics Max Dynamic Frequency is 854MHz support Quick Sync Video delivers fast conversion of video for portable media players, online sharing, and video editing and authoring, and Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory, TDP only has 10W.

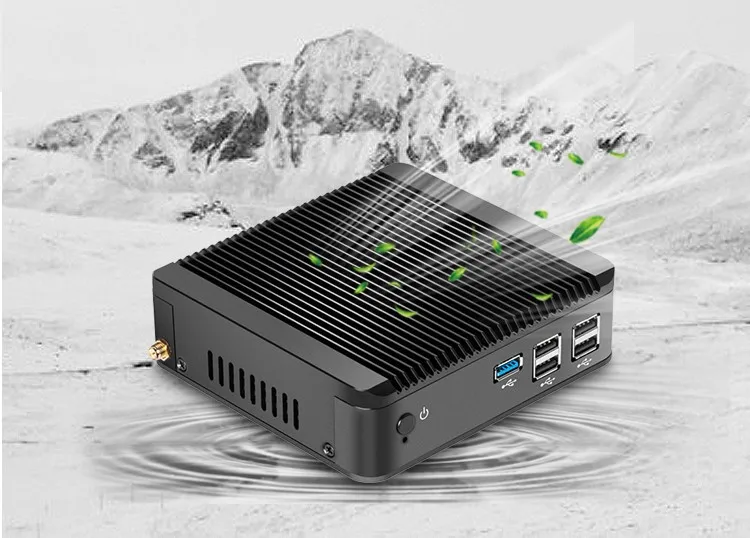

Non-fan design, Efficient heat radiation
If equipped with a fan, the computer is OK at the first, As the time goes by, the noise of the fan will be growing. No matter how better your fan is, you still can’t avoid it, which will lead to repair, at the same time the fan will generate air duct, which will inhale a lot of dust, More than half a year later, dust accumulates on the computer board, which is easy to lead to computer short circuit and repair again. Therefore, dust is considered a natural enemy to computers, but non-fan design guarantee not only the stability, but also long term use without dust to enter and non-noise. And you will never be worried that the fan is broken,Many computer users hope their computer are noiseless. If coupled with mini size,Low power consumption, the computer will be more stable.

Application of product
Such small computer can be used in what area
1.Home/hotel use, HDMI design can support high-definition audio and Video synchronization, watch HD movie with family, a small home theater is not a dream, also the mini PC support samll game, at the free time, play the game with family would be a good choice.
2.Office/school use, simple design style office with the small body and non-fan desktop computer and support the wall hanging in the back of the display, so that your desk clean and tidy, bring you a relaxed working environment.
3.Industrial use, non- fan design and wave pattern case to bring ice radiating and more stable, rich interface design would be good for industrial.

Our Company

Shenzhen Innovative Cloud Computer Co.,Ltd was established in year 1999,is a professional manufacturer which specialized in high quality mini PC,all-in-one PC ,computer motherboard.All along we constantly developing new products,up to now own more than 40 kinds of independent research products and many patented technology. we have own R & D department, Strong engineer team with rich experience of PCBA, ODM case involved case/ color/ LOGO etc, 80% products export to Europe/US/south America,Strict quality control system from IQC to PQC to QA.

Certifications
Packing & Delivery

we are support "L/C; DA; DP; T/T; Western Union; Paypal. "But according the contract and which country"

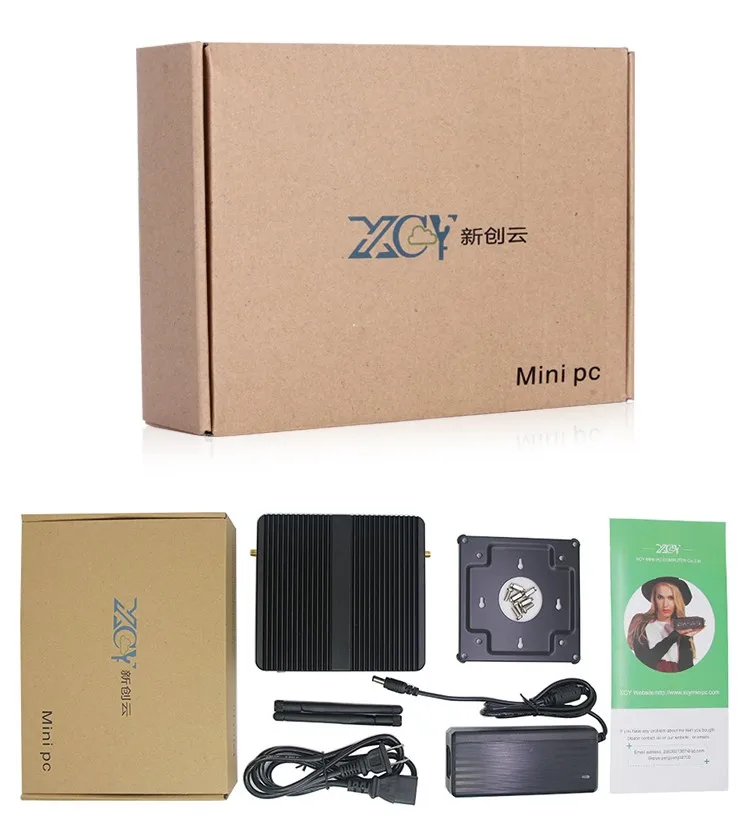

Packing List
Normally we use the carton box, 10pcs per carton, 30KG per carton, the size is :60 x 39 X 26
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket
1 x Warranty card & user manual
Delivery
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,We will choose the right logistics according to your country.

FAQ
1.Such a small computer,how is its running speed?

A:Our mini PC use new generation architecture Intel CPU with M.2 SSD,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.

2.Q: What is fanless computer?Not used yet,any features and advantages ?

A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
Differences between fan and fanless computers:
Noise: fan computer makes much noise in working,even if it’s high quality but fanless computer makes zero noise.
Dust: fan computer accumulates lots of dust for a longer time used,and dust can make the motherboard circuit shorted;fanless computer never has such troubles.

3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?

A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.

4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?

A:This computer with HDMI and VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full HD.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.

5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.


A: The CPU is from Intel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it’s widely used in office,commercial use,live room.It’s works perfectly in WIN7,bule-ray,3D HD videos,it also support well 3D games.

6.Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this.

A:The CPU is Intel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won’t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one will be tested 3*24hrs before shipping.Normally the heat doesn’t affect the CPU life at all if the CPU temperature is under 80℃,so don’t worry at all for its cooling.

7.Q:Why do I feel the casing so hot when it ‘s working?

A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.

8.Q:How long can this mini computer used?

A:XCY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
