chinese website A grade certified solar cells12v solar cell

Feedback Ratings
US $1.90 / Piece |1000 Pieces (1 lot) (Min. Order)
1000 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN 12v solar cell
Model Number:
T1M-1780
Material:
Monocrystalline Silicon
Size:
156*156mm
Number of Cells:
1pcs
Max. Power:
4.4watt
Material::
monocrystalline Silicon
solar cell::
12v solar cell
Certificate::
ISO9001,CE/TUV
Size::
156*156mm
Front side::
Two/three 1.9/1.6mm wide silver bus ba
Tickness::
200μm±30μm
Materials::
12v solar cell mono
OEM Order::
Acceptable
Back side::
3mm wide silver soldering pads
brand name:
resun 12v solar cell

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
45X30X25 cm
Gross weight per batch:
70.0 KG
Package Type:
original Package, 100pcs in one boxes, 10boxes in one carton.
Lead Time :
2

Specifications

12v solar cell
1.16.8%~18.25% efficiency
2.100% good quality
3.ISO9001/ISO14001/TUV/CE/UL
4. A grade cell

chinese website A grade certified solar cells 12v solar cell
1.16.8%~18.25% efficiency
2.100% good quality
3.ISO9001/ISO14001/TUV/CE/UL
4. A grade cell

  Resun solar cell All Your Best Choice

feature

Physical Characteristics of   broken solar cells for sale
Dimension:  156mm×156mm±0.5mm
Diagonal:       220mm±0.5mm
Thickness(Si):  200±20 μm
Front(-)        anti-reflecting coating (silicon nitride);
1.5mm wide bus bars;
Distance between bus bars: 51mm .
Back(+)Aluminum back surface field;
2.0mm wide soldering pads;
Distance between bus bars :51mm .
Electrical Characteristics of  broken solar cells for sale
  Efficiency(%)1817.817.617.417.216.816.616.416.21615.815.6
  Pmpp(W)4.334.294.244.194.144.094.043.993.943.93.863.82
  Umpp(V)0.530.5270.5240.5210.5180.5160.5140.5110.5090.5060.5030.501
  Impp(A)8.1598.1268.0818.0357.997.9387.8767.8137.7547.6987.6427.586
  Uoc(V)0.6330.6310.6280.6250.6230.620.6180.6170.6150.6130.6110.609
  Isc(A)8.7098.6778.6298.5788.5318.4788.4198.3568.2898.228.1518.083

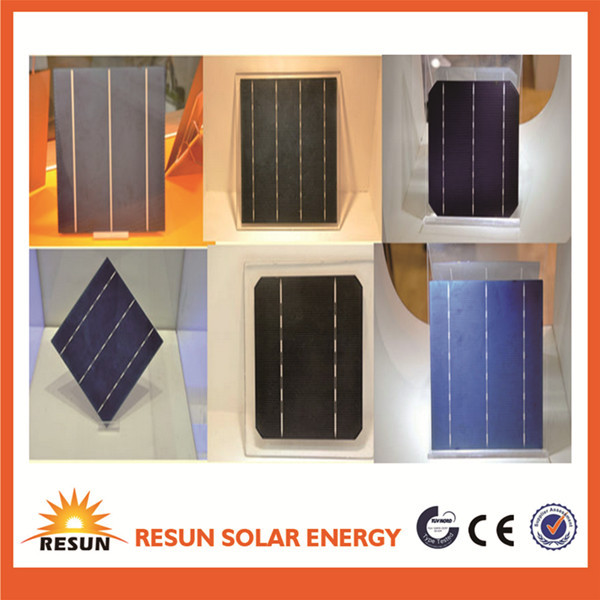

Products\' pictures

Monocrystalline 125/156mm and polycyrstalline156 solar cell more pictures:


packing

Packaging

u 100pcs/ctn, one carton is about 2kg.

u Individual packing requirement is acceptable.

By Sea

Delivery from Shanghai or Ningbo seaport

By Air

Departure from Shanghai Pudong Airport

By Express

Post by DHL, EMS, UPS, TNT.



01



01



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



ABOUT US

We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
