concrete floor grinding and polishing machine

Custom Branding
Feedback Ratings
  • 1-4 Sets
    US $12980.00
  • >=5 Sets
    US $11800.00
Quantity:
- + Sets available
Custom branding options are available:
Custom branding options are available when you order at least 1 Sets.
Place brand on package US $50.0 / Set
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Max. Grinding Diameter:
800mm
Max. Grinding Length:
Concrete Floor Grinder with Planetary Disc for four disc
Place of Origin:
Fujian, China (Mainland)
Brand Name:
HTG
Model Number:
HTG-800-4A
Voltage:
220-240V three phase
Power(W):
20HP
Dimension(L*W*H):
135*87*120cm
Weight:
555KG
Certification:
CE/SGS/ISO9001
After-sales Service Provided:
Overseas service center available
Property:
Super Concrete machine
Grinding disc:
256mm*4
Rotating speed:
450-1950rpm
Horse power:
20HP
Water Proof:
2.55m
Water Tank:
40L
Add Weight Iron:
25kg*2
Motor:
Wonder
MOQ:
1set
OEM:
yes
Product Description

The HTG-800-4A is the newly creation in Xinyi High Tech Grinding Polishing Machine System. Labor pushing and pulling to drive the machine is the traditional and HTG-800-4A use the electrical driver to drive the machine. There is a switch on the control panel which can control the walking speed, forward and reverse of machine. ( 0-30m/Min). When machine needs to turn around and the operator needs to handle.

220V three phase Concrete floor grinding machine
Concrete floor grinding machine
Voltage
220-240V
Three phase
Working width
800mm
Grinding disc
256mm*4
Polishing machine
Motor rotating speed
450-1950rpm
HP
15KW/20HP
KW/HP
Weight
555KG
KG
Floor grinder
Extra weight
25KG*2
Additional weight
Packing size
135*87*120cm
cm
Configuration
IE2 WD motor+Delta inverter

Main Features

1)Reduce the labor force greatly ( Machine can walk by itself and operator only needs to join when turn around )

2)Walking at setting speed with long battery life ( Machine can walk at setting speed at upward or downgrade slope. For example, if you make setting 10meter/min, machine will proceed base on the program instruction)

3)Built-in battery for easy handling.

4)Long battery life ( Charge 7 hours can walk 25 hours )


Remark: The HTG-800-4A has standard and advanced configuration.
The standard HTG-800-4A needs to charge the battery in advance so that it can be self- propelled. Battery life ( 7 hours charge allow 25 hours work )

Certifications
Detailed Images

Machine Parts

Name: SELF-PROPELLED Grinder and Polisher

The self-propelled motion allows the floor manager on the job site to set all machines with the same feed rate and speed/rpms for consistent scratch pattern. The operator needs to just glide the machine in the right direction with almost no effort. This features saves time and minimizes the risk of operator's mistakes.

Main Features

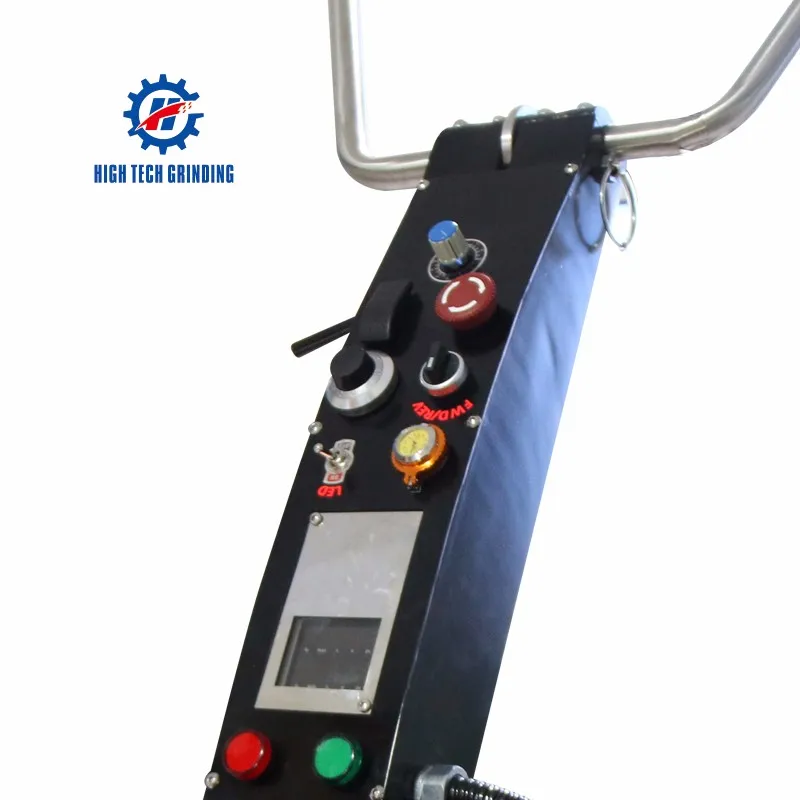

Name: Handle
To make operate is more easy .

There is a switch on the control panel which can control the walking speed, forward and reverse of machine. ( 0-30m/Min). When machine needs to turn around and the operator needs to handle

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
135(L) * 87(W) * 120 (D)
Weight
555kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
135 (L) * 87 (W) * 120 (D)
Weight
555kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
