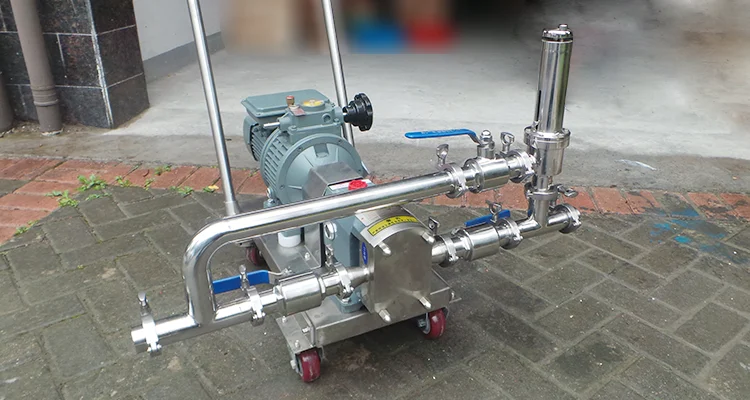

food grade rotary lobe pump sanitary lobe pump price stainless steel rotor pump

  • 1 - 9 Sets
    $1,123.00
  • >=10 Sets
    $1,050.00
Type:
lobe pump
Maximum Head:
10m
Maximum Flow Rate:
2160L
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ZH
Model Number:
ZB3A-3
Place of Origin:
Shanghai, China
Application:
Food and Beverage Industry
Horsepower:
0.75hp
Power Source:
Electric
Pressure:
3bar
Structure:
Gear Pump
Outlet Size:
25mm
Voltage:
380V,3 Phases,50 Hz
Power:
0.55kw
Certification:
ce
Product name:
rotary lobe pump sanitary lobe pump price stainless steel rotor pump
Connection:
Clamp, Thread, Welded, Flange
MOQ:
1 piece for stainless steel rotary lobe pump
Motor Power:
0.55KW-22KW
Material:
304 or 316L
Color:
steel true colors
Application scope:
dairy,food,beverage,pharmacy,cosmetic
Packing:
plywood or customerized
Motor:
ABB/domestic
Delivery details:
Usually within 10 days after payment
Supply Ability
Supply Ability:
300 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden frame export package for food grade rotary lobe pump sanitary lobe pump price stainless steel rotor pump
Port
Ningbo or Shanghai Port
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

food grade rotary lobe pump sanitary lobe pump price stainless steel rotor pump

Rotor pump is also named rotary lobe pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and resvoIve in the sequence of a→b→c→d. When it revolves to position a, only housing I is filed with medium; when it revolves to position b, housing B encloses part of the medium, when it goes to position C, housing A encloses medium, and finally it goes to position d, then housing A, B and ll are interlinked and the medium is transported to the outlet. As this process is repeated, medium(material)is transported continuously.

High Viscosity Material Feeding Pump

With the characteristics of volume pump, low rotation speed, high output torque, high temperature resisting, the rotor pump plays a very important role in feeding high viscosity, high temperature material fields. It has a unique operation principle matching and can be used matching a powerful driving system, so that the rotor pump can output a powerful driving moment at a low speed and ensure material feeding consistently, without stagnancy, and also can ensure that the material performance in the process of material feeding not be damaged. The medium viscosity can reach 1,000, 000CP fed by this pump

Thin Medium Feeding Pump

When rotor pump feeding special thin medium, especially feeding thin medium without pulse as required, a big performance advantage can be shown. If the viscosity of the fed medium descends and leakage increases, driving system matched with rotor pump can improve the rotation speed and ensure the invariance of the output flux

Sanitary Feeding Pump

All parts contacting with material are made of stainless steel which is conforming to sanitary standard, applicable to sanitary and erosion resisting place in fields of food, drinks, pharmacy, chemical industry, etc

Heat Preservation Sleeve Design

Rotor pump with heat preservation sleeve function can be provided in different working places. This configuration can ensure the material which is easy to be coagulated during feeding to preserve the heat, without coagulation.

Water cleaning mechanical seal

Mechanical seal configuration with water cleaning function can be provided, preventing equipment normal operation on the end surface of the mechanical seal from coagulation during feeding high viscosity material, and the service life mechanical seal in bad environment can be ensured

Almost Have No Consumable parts

It doesn't have any damage on the part during the rotor pump is operating(except mechanical seal), all parts contacting with material is made of stainless steel. A pair of rotors run synchronically during operating in a space with each other, no contact, it won't be any damage in theory, the rotor pump can work at temperature of 220℃ in all environments
