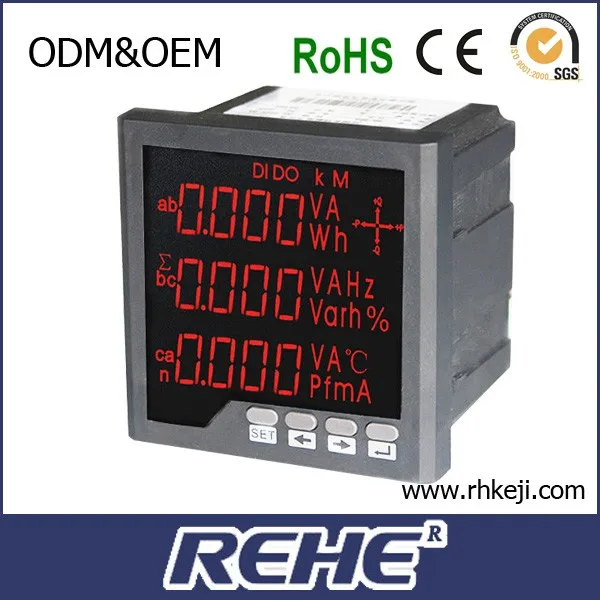

intelligent digital multi -function monitoring meter RH-3D3

Feedback Ratings
  • 1-99 Pieces
    US $37.00
  • 100-999 Pieces
    US $35.00
  • >=1000 Pieces
    US $33.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
China
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
REHE
Model Number:
RH-3D3
Measuring Current Range:
0-20A
Measuring Voltage Range:
1000V
Measuring Resistance Range:
200 -200M
Measuring Capacitance Range:
20nF-200uF
Measuring Inductance Range:
0-20H
Operating Temperature:
-10°C ~+55°C
Dimensions:
96*96
name:
multi -function monitoring meter
color:
white / black
input range:
0-5A AC
display range:
9999
Display:
LED
Service:
ODM Availabel
Certificate:
ISO
Frequency:
10Hz-10MHz
Standard Accessories:
Manual
Warranty:
Three-years


Welcome,my friend! Glad to introduce intelligent digital multi -function monitoring meter  RH-3D3

 If you have any questions, please don't hesitate to ask me.

Product Description

RH-D Series Multi-function Monitoring Meter

Performance Characteristics

1.High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters

2.Forward and reverse active or reactive energy measurement

3.Division of electric energy metering, time-sharing power timing meter reading

4.Measurement of three-phase voltage, three-phase current total harmonic distortion (THD), 2-31 odd harmonic component

5.Provide the digital tube display, local data query

6.Menu button intuitive, simple operation

7.Current, voltage gain programmable

8.Provide multiple circuit leakage current monitoring

9.provide multiple loop control nodes, can be used for the alarm, trip control

10.Support for fire control, remote cut off the fault circuit

11.Support for RS-485 communication, Modubus-RTU protocol

12.Support for switching input, output, analog quantity transmitting output

13.Convenient installation, wiring is simple, small engineering quantity

14.A wide range of AC/DC power supply: AC/DC 80-270V

15.To be completed by SCADA, PLC in a variety of communications software networking

Technical Index

Accuracy of measurement

Voltage level 0.5

Current level 0.5

Active power 0.5

Reactive power level 0.5

Power factor 0.5

♦Frequency ±0.02Hz

Active electric energy class 0.5s or class 0.2s

Reactive energy grade 1 or grade 2

Signal input

♦Connection mode of four phase three wire, three phase three line

♦Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V

Rated current AC1A,AC5A

♦Overload voltage:1.2 times ( Continued ), 2 times / second ( instantaneous )

♦Power consumption voltage: <1VA/ phase,current:<0.4VA/phase

♦Impedance >300KΩ, current: <20mΩ

♦The frequency of 45~65Hz

Auxiliary power supply

Working range AC/DC 80~270V

♦Power consumption   <4VA

Function module

♦Communication interface 1 way RS-485 communication, Modbus-RTU protocol

♦Baud rate: 1200~9600bps, the default 2400bps

♦Switch input support 4 stem node input

♦The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A

♦Transmission output support 3 analog output: 0/4~20mA or 0~5/10V

Electric energy pulse output support 2 electric energy pulse output,constant:8000imp/KWh(Kvarh)



Function Available

I: switching input+$1.67
O: Switching Outputs +$1.67
T: With Free RS485 Communication
D: Analog Output+$6.67





Unit (mm)

Code

1

2

3

4

5

6

7

8

Panel Size

160*80

120*120

96*96

120*60

96*48

72*72

80*80

48*48

Hole Size

152*76

111*111

91*91

114*56

92*45

67*67

76*76

45*45

Product Description2

Section of Specification

  Function

                     Model NO.

measurement

Extended function(optional)

Display

Hole size  (mm)

Three phase all-parameter measuring

Multi- rate,

Harmonic measuring

switching input

switching output

Analog output

Communication interface

LED

LCD

RH-3D2



-

-

4

4

4

2

-

111*111



RH-3D2Y



-

-

4

4

4

2

-

RH-3FD2Y





-

4

4

4

2

-

RH-3HD2Y



-



4

4

4

2

-

RH-3FHD2Y







4

4

4

2

-

RH-3D3



-

-

4

4

4

2

-

92*92



RH-3D3Y



-

-

4

4

4

2

-

RH-3FD3Y





-

4

4

4

2

-

RH-3HD3Y



-



4

4

4

2

-

RH-3FHD3Y







4

4

4

2

-

RH-3D7



-

-

-

-

-

1

-

76*76

RH-3D7Y



-

-

-

-

-

1

-

RH-3FD7Y





-







1

-

RH-3HD7Y



-









1

-

RH-3FHD7Y













1

-

RH-3D6



-

-

-

-

-

1

-



68*68

RH-3D6Y



-

-

-

-

-

1

-

RH-3FD6Y





-







1

-

RH-3HD6Y



-









1

-

RH-3FHD6Y













1

-

RH-3D9



-

-









-







135*135

RH-3D9Y



-

-









-

RH-3FD9Y





-









-

RH-3HD9Y



-











-

RH-3FHD9Y















-

RH-3D8



-

-

-

-

-

1

-

45*45
