Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HORED
Model Number:
EPON5700-02
PON interface:
2
Uplink port:
4
local management interface CONSOLE:
1
external 10BASE-T Ethernet port:
1
Transmission distance:
20KM
Port Rate:
1.25Gbps symmetry
Layer2 aggregation switching:
supports
QOS guarantee:
supports
Rich OAM features:
supports
Complete network management functions:
supports
Product Description

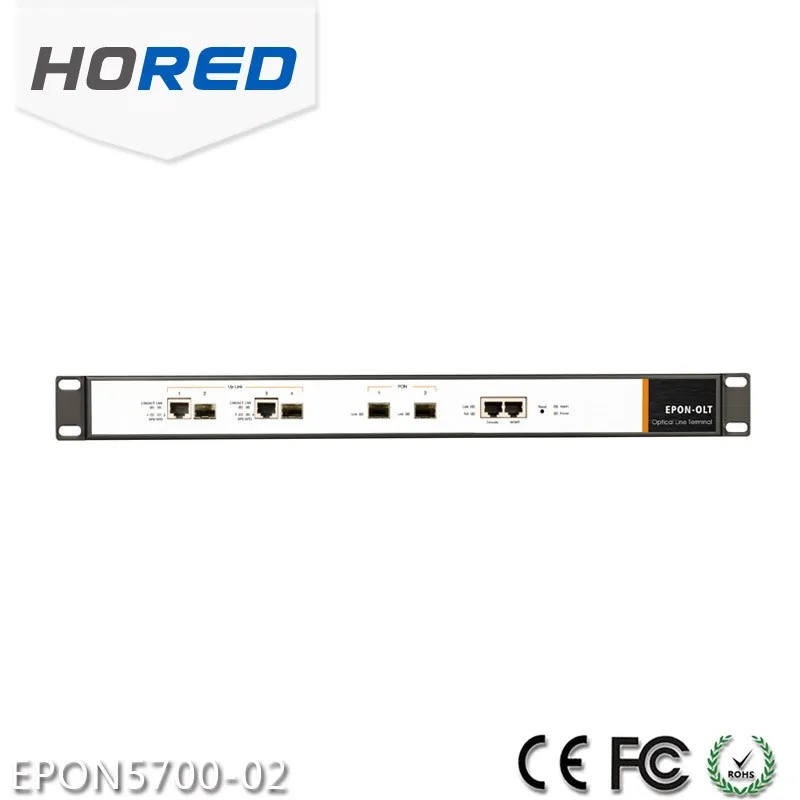

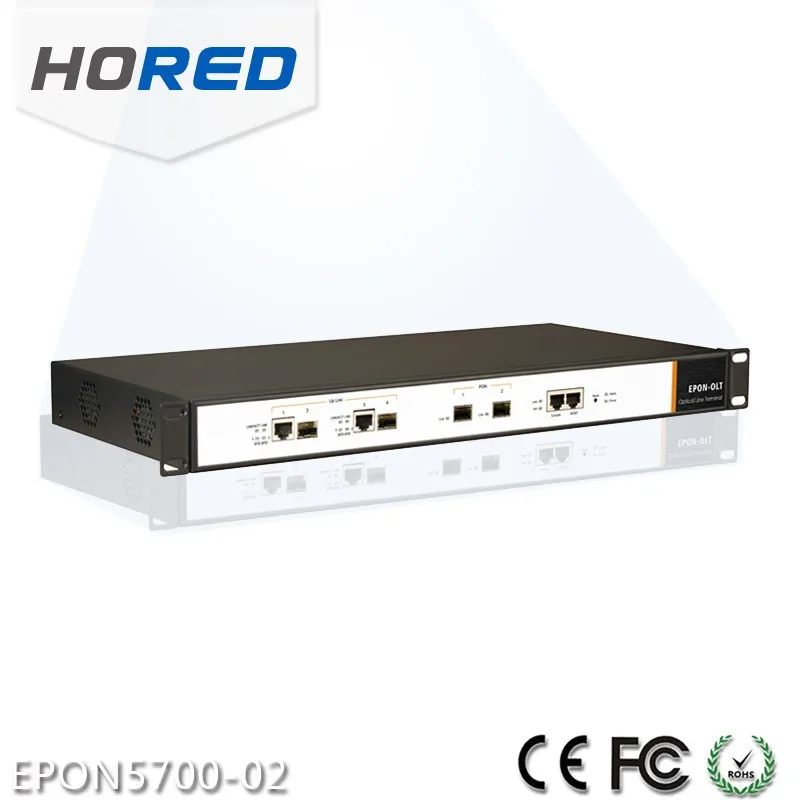

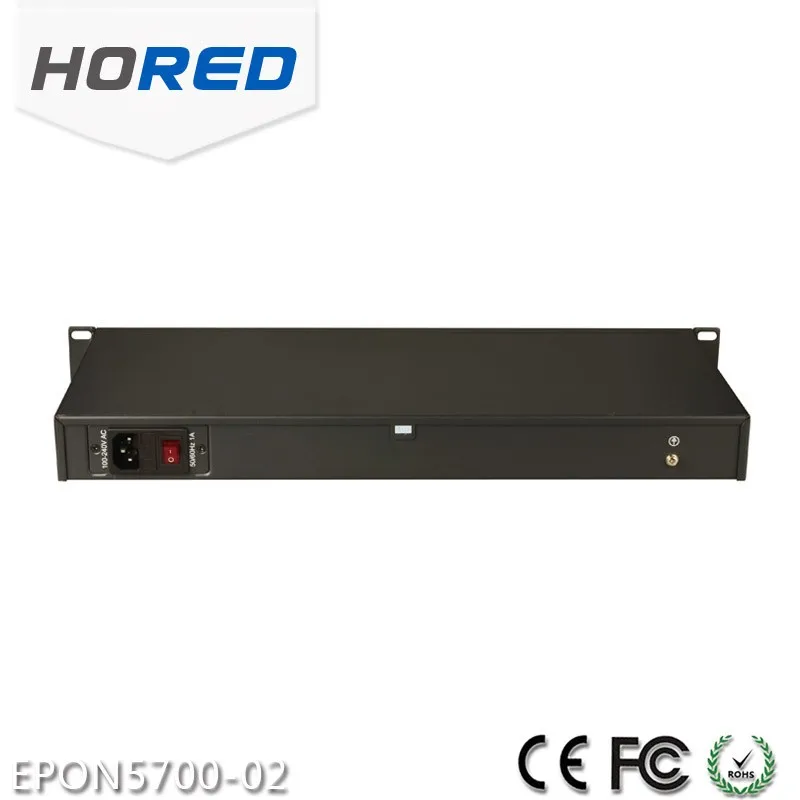

EPON5700-02 EPON Access is designed for security application scenarios miniaturized cassette OLT equipment.EPON5700-02 using 1U 19 inch standard machine box,configure two fixed PON ports,high reliability,low cost,easy to use,flexible deployment features.


EPON5700-02 built powerful switching module,supports full Gigabit wire-speed forwarding business,support rich Layer 2 protocol;Built-in network module, support the band,band network management,command line support,SNMP,rich of graphical network management platform EMS centralized network management;


EPON5700-02 maximum support 128 ONU access, coverage 20KM,Generally Speaking,deployed in the central office,the resident community room, directly attached to the user at the ONU through the ODN network.Depending on the user scenario, the product can meet the application FTTB, FTTC, FTTH access and other occasions, It is the best choice for low-input operator construction EPON access network.

Features

Miniaturized, low-cost, flexible deployment
EPON5700-02 fixed configuration two PON ports, each PON port supports a maximum of 1:64 split ratio, the machine supports up to 128 access ONU; maximum transmission distance of 20KM (not more than 1:32 splitter); EPON5700- 02 using 1U 19 studio gear box structure, small size,environmental adaptability, suitable for deployment in ONU access density is not high, small and medium sized networks

Layer2 aggregation switching
EPON5700-02 powerful built-in features Layer 2 switching module supports full Gigabit wire-speed forwarding business support rich Layer 2 protocols.Four Gigabit uplink ports,2 light 2 electrical configuration supports port VLAN, flexible QinQ, link aggregation for network operators to provide a variety of flexible options;

QOS guarantee
EPON5700-02 the OLT unit based hardware implementation DBA dynamic bandwidth allocation, reliable, and efficient.Each system supports multiple ONU LLID configuration on the upstream and downstream directions can configure multiple priority scheduling queue,a fundamental guarantee for high-priority services can be best guaranteed QOS.

Rich OAM features
EPON5700-02 System Support ONU automatic discovery, automatic registration, support for single link automatic loopback testing capabilities to support based on port, protocol-based VLAN support IGMP Proxy, Snooping function,ACL packet filtering based on portpacket classification functions,port-based traffic control and traffic shaping abundant operation and manageable features.

Complete network management functions
Centralized management support my company's integrated network management platform EMS software;Support local command-line management,SNMP management; support the band, band network management;EMS network C / S structure-based design,with a complete network management capabilities. Supports automatic network topology, manually modify the topology,alarm system and alarm log filter,save, operation log classified information,save the output, database backup, recovery, business performance real-time monitoring,history records check. Support for OLT, ONU software upgrade online.

Easy to install, easy to maintain, plug and play
EPON5700-02 easy to use, by default, the device is turned to work properly, ONU automatically registered, no additional configuration;the device after deploying the device operation status monitoring and configuration of the necessary business operations through the remote management platform.

Technical Specification
