nema34 ac permanent magnetic brushless 750w servo motor with encoder

  • 2-14 Pieces
    $96.00
  • >=15 Pieces
    $91.00
Output Power:
750 w
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
MiGe
Model Number:
90ST-M02430
Type:
Servo Motor
Frequency:
50 hz
Phase:
Single-phase
Certification:
CE
Protect Feature:
Drip-proof
AC Voltage:
208-230 / 240 V
Efficiency:
IE 3

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X26X24 cm
Single gross weight:
3.6 kg
Package Type:
Packed in carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Video Description

90mm frame 750w ac permanent machine motor has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.

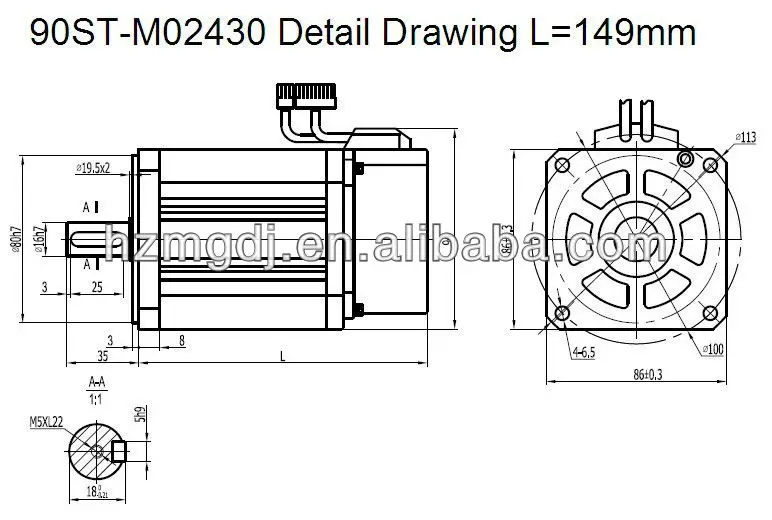

The specification of 90mm frame 750w ac permanent machine motor:



Motor model

90ST-M02430

Rated power(W)

750

Rated voltage(V)

220

Rated current(A)

3

Rated speed(rpm)

3000

Holding torque(N.m)

2.4

Peak torque(N.m)

7.1

Voltage constant(V/krpm)

51

Torque coefficient(N.m/A)

0.8

Rotor inertia(Kg.m2)

2.45×10-4

Phase Resistance(Ω)

3.2

Phase Inductance(mH)

7.0

Machanical time-constant(Ms)

2.2

Weight(Kg)

3.4

Encoder line number(PPR)

2500

Insulation class

Class B(130 Celsius degree)

Safety class

IP65

The operating

of Environmental Conditions

                              Temperature: -20 ~ +50 Celsius degree

                              Humidity: Below 90%RH No dewing

Motor winding

plue

Winding lead wire

U

V

W

PE



Plug serial numberr

2

3

4

1



Encoder plug

Signallead wire

5V

0V

A+

B+

Z+

A-

B-

Z-

U+

V+

W+

U-

V-

W-

PE

Plug serial number

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1



Please contact with us for more detailed technical information.



We can make according to your requirements.
