new and cheap MEAN WELL 30v~36v driver 150W ELG-150-36A

Feedback Ratings
  • 50-99 Pieces
    US $26.70
  • 100-499 Pieces
    US $25.80
  • >=500 Pieces
    US $25.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
China
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MEAN WELL
Model Number:
ELG-150-36A
Output Power:
150W
Output Type:
Single
Input Voltage:
180-264VAC
Output Voltage:
36V DC
Output Frequency:
0HZ
Output Current:
0~4.17A
Watt at full load:
150W
Protections:
Short circuit/Overload/Over voltage
Effi:
as high as 93%
Working Temp:
-40 ~70 ℃
Certification:
UL CE CB
Warranty:
5 Years
No load power consumption:
<0.5W
IP level:
IP65/IP67
Dimension(L*W*H)(mm):
219*63*35.5
Type:
MEAN WELL 30v~36v driver 150W
Welcome to visit
Product Description

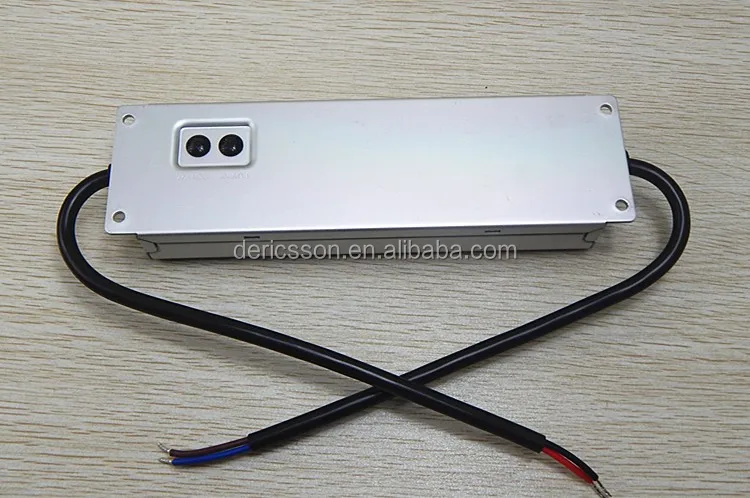

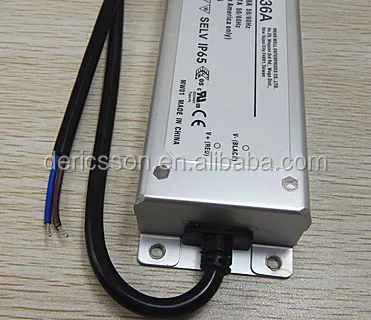

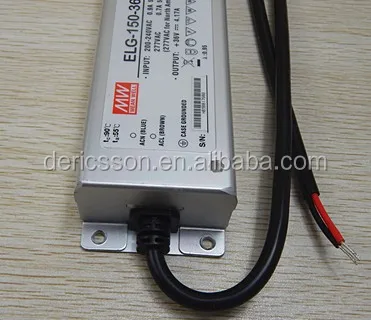

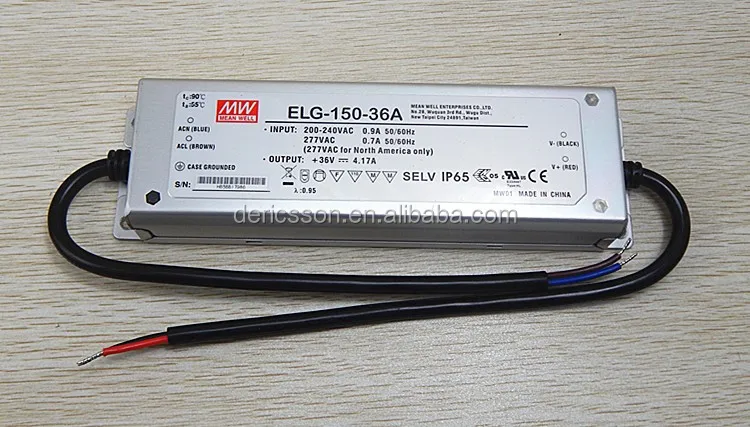

new and cheap MEAN WELL 30v~36v driver 150W ELG-150-36A


ELG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. ELG-150 operates from 180~305VAC and offers models with

different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%,

with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this

series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features.

•Constant Voltage + Constant Current mode output

•Metal housing design

•Built-in active PFC function

•No load power consumption <0.5W

•IP67 / IP65 rating for indoor or outdoor installations

•Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off}; Smart timer dimming; DALI

•Typical lifetime>50000 hoursIn Stock

•5 years warrantyIn Stock


Applications.

•LED street lighting

•LED architectural lighting

•LED bay lighting

•LED floodlighting

•Type “HL” for use in Class I, Division 2 hazardous (Classified} location.

Type
IP Level
Function
Note
Blank
IP67
Io and Vo fixed.
In stock
A
IP65
Io adjustable through built-in potentiometer.
In stock
B
IP67

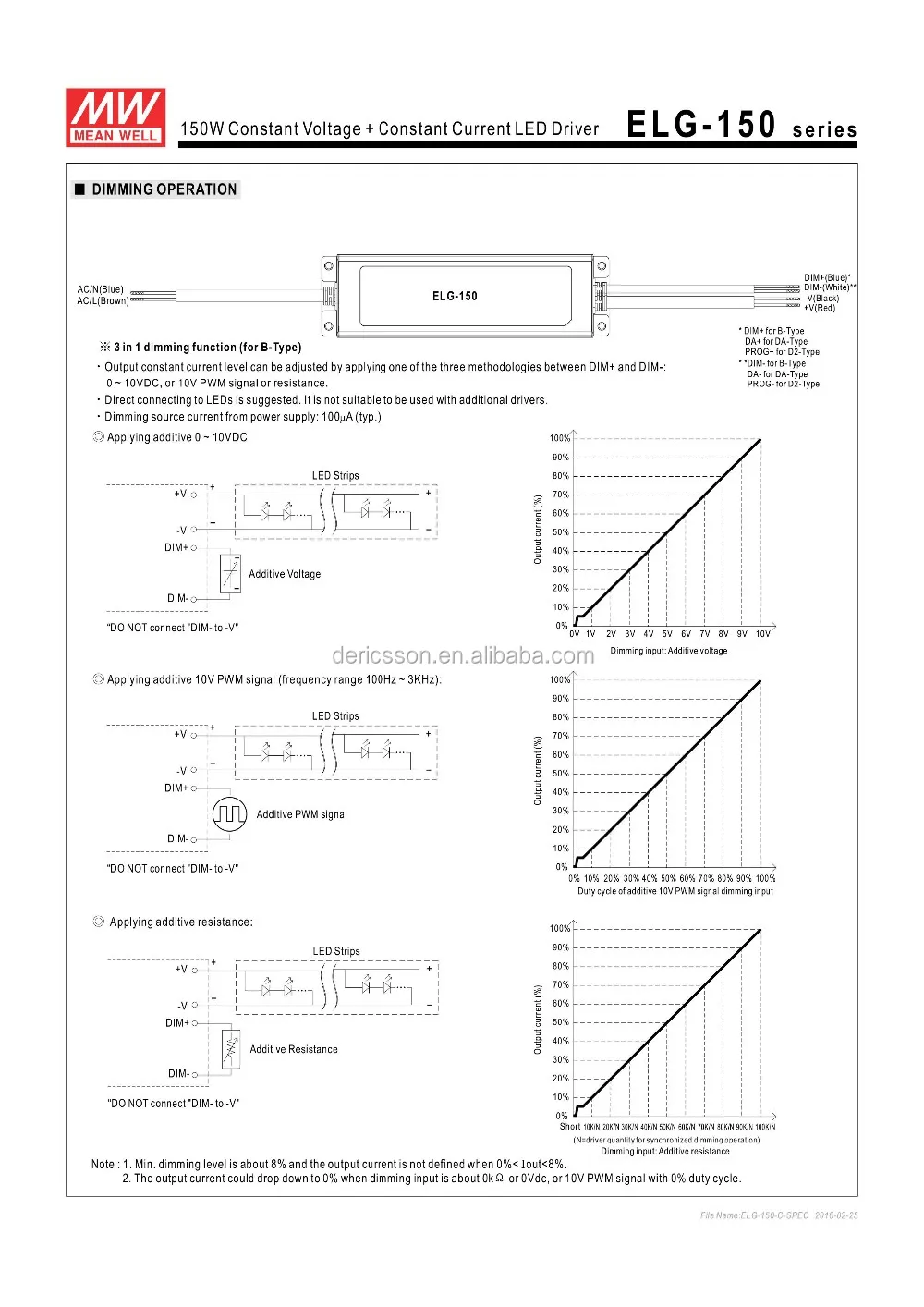

3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance}
In stock
DA
IP67
DALI control technology.
In stock
Dx
IP67
Built-in Smart timer dimming function by user request.
By request
D2
IP67
Built-in Smart timer dimming and programmable function.
In stock

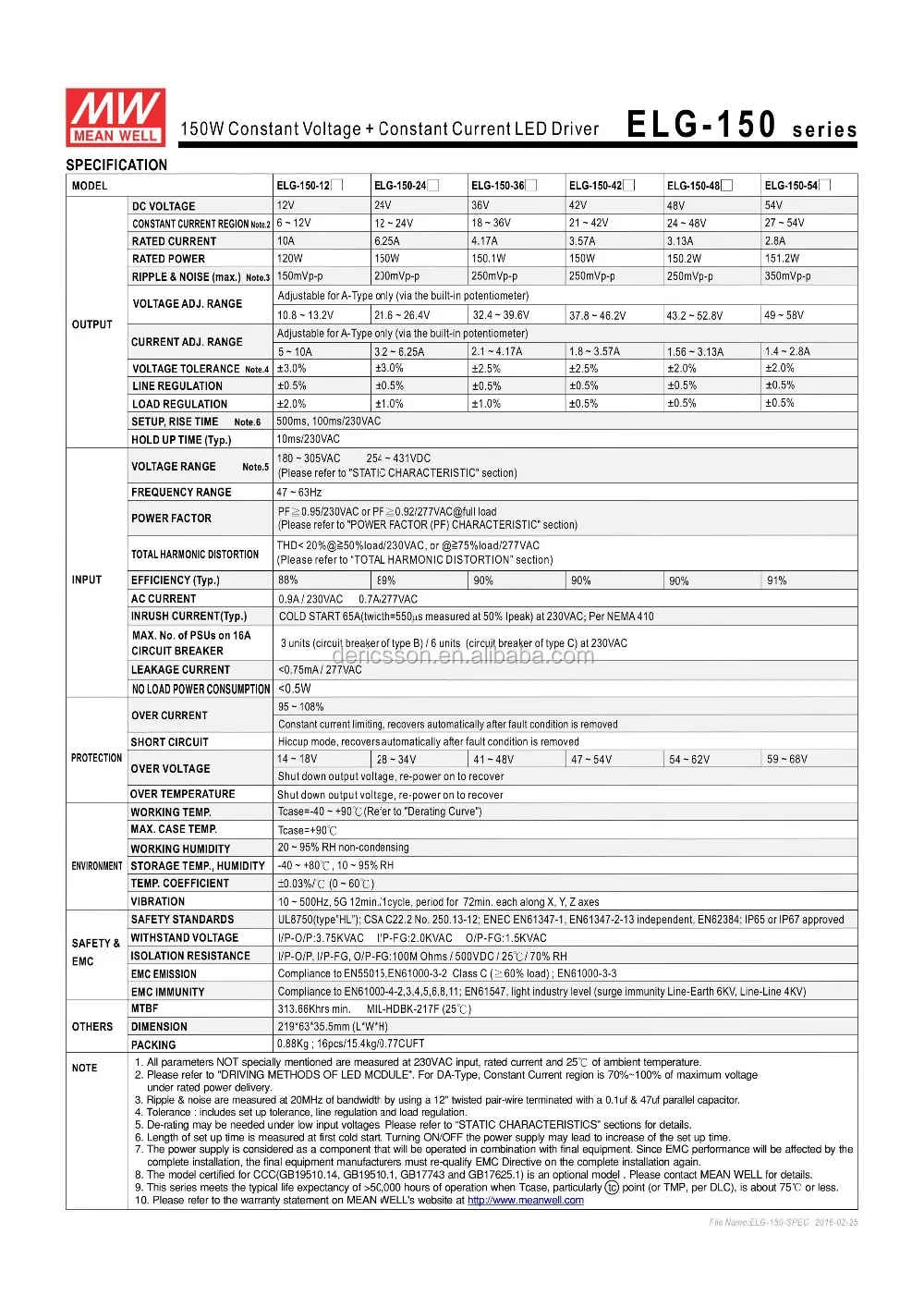

The detailed specification or the whole catalog can be sent to you at your request.  Pls contact us to get it.  We are glad to do so!

Output Voltage and Current adjustment

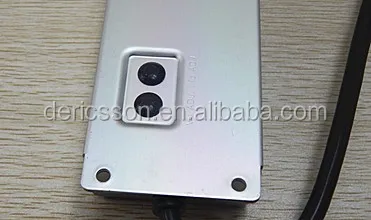

output adjustable via potentionmeter;  See the black cover.

The voltage can be adjusted between 32.4~39.6VDC,  the current can be adjusted into 2.1A to 4.17A.


Once the driver is in C.C mode,  then its output voltage will be 18~ 36VDC.

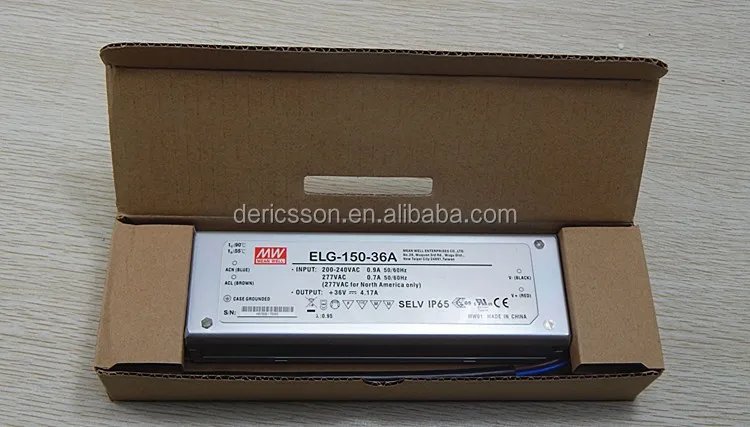

Delivery

Step 1.   The packing details will be given,  such as total weight, packing pics, volume.

Step 2.   The freight costs will be quoted for selection,  such sea shipping cost, air shipping cost and express costs (DHL/FedEx/TNT/UPS).

Step 3.   Once the shipping method confirmed, we will send the goods for customs declaration in China. Usually, it takes 1 day.

Step 4.   After customs declaration, the goods will be loaded on flight or vessel, then leave for the destination.

Step 5.   Before the goods arrive, we will give u the clearing docs for the customs clearing in the destination country.

Step 6.   Dispatch.  The buyer shall get the goods and check the goods condition after clearing done.

Product Certificates

MEAN WELL products certificates.

Our products is with many certificates for different countries and areas, such Rohs,UL, CSA, CE,CB,TUV, LVD, EMC,GL, GS,CCC,FCC,PSE.
Some series are under medical standard, can use applied in medical field.
Some series is with PFC function, green and energy saving.
Ps:  if you have require on a certain certificate,  pls let us know first.  We will provide you the right power supply.
Trade Conditions

Payment term

Bank transfer ( T/T ), Paypal , Western Union , Credit Card , are accepted here.

USD, EURO, RMB are acceptable here.

100% in advance or 30% in advance & the balance before delivery is available here.

If you have different minds on our payment condition,  welcome to nego together.

Trade terms

FOB , CNF , CIF ,FCA , EXW , DDU is available here.

FOB port,  Shanghai, Ningbo, Shenzhen is better!

Samples order

Samples order is acceptable and welcome.  You can pay via Paypal,T/T or even purchase on our Aliexpress store.

MOQ >= 2 pcs     If possible,  a whole carton is better, as it is easy to pack.

In order to give a safe and on-time delivery,   DHL/FEDEX/TNT/UPS is preferred to suggest.

Bulk order

Deposit in advance and the balance before delivery is preferred. Sea shipping will be advised and the freight will be quoted.    If urgent, air shipping will be suggested.

We can make door to door, if you required.

Lead time

We always keep enough stocks for a quick delivery!   1 working day for most goods.
4 working days for the goods which is in our factory warehouse, as it needs time to reach our city warehouse.
For OEM/ODM goods and qty over 2000pcs,  usually, the lead time is 4 weeks.

Alibaba trade assurance order

If you prefer, pls place Alibaba trade assurance order on our Alibaba.   Your order will be 100% safety and under Insurance!

* 100% product quality protection

* 100% on-time shipment protection

* 100% payment protection
