retail hot-sale 10liter LPG/NG instant gas water heater sample

Feedback Ratings
  • 1-49 Pieces
    US $100.00
  • 50-99 Pieces
    US $80.00
  • 100-499 Pieces
    US $60.00
  • >=500 Pieces
    US $45.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Storage / Tankless:
Instant / Tankless
Installation:
Wall Mounted
Housing Material:
white coating
Certification:
CE, ISO9001:2008
Power (W):
20000
Voltage (V):
3
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
haobang
Model Number:
JSD20-W01
Product name:
instantaneous Gas Water Heater
Type:
10Liter gas water heater
Display:
LED Displayer Optional
Product size:
590*340*180mm
Water pressure:
0.025-1.0MPa
Rated power:
20KW
Heat efficiency:
over86%
Exhaust way:
Flue pipe
Usage:
Shower Water heater
Gas type:
NG(2000Pa)/LPG(2800Pa)
Product Description

Retail hot-sale 10L gas water heater


 Features:

* Low water pressure starup function

* Instant heating, 3-5 seconds supply hot water

* Double ignition pin,Water control automatic impulse ignition by Water-gas interlock valve
* Flame out failure protection , Anti-dry combustion
* Over heating and 20 minutes timer  protection device
* Panel in new and good design, Metal with coating/glass/stainless steel optional
* Winter-summer switch for gas saving
* Good pulse ignitor to keep the battery funtional in one year.
* Excellent heat exchanger asorbs heat more efficiently.
* ODS can be chosen
* Special Cold and hot water convert.

Thick Data reference
Model
6L/min
7L/min
8L/min
10L/min
12L/min
15L/min
Heater Exchanger
0.8-1.2kg
1.2-1.5kg
1.5-1.8kg
2.0-2.2kg
2.2-2.4kg
3.0-3.5kg
Burner
3 rows 250mm
4rows 250mm
5rows 250mm
13rows 110mm
13rows 110mm
18 rows
110mm
product size(mm)
440*290*120
500*300*140
520*320*180
590*340*180
610*340*140
650*420*185
packing size(mm)
520*335*170
590*360*190
600*370*245
710*405*230
710*405*230
740*490*230
20GP/40HQ(pcs)
940/2250
690/1680
520/1240
420*1020
420/1020
330/810
Detailed Images

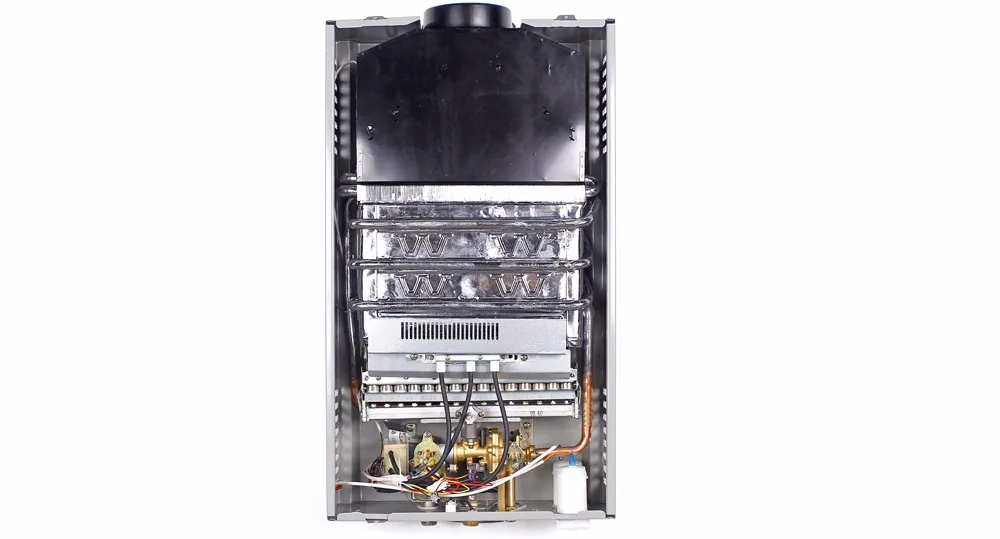

                        6L,7L,8L Flue type inside structure

                                     8L,10L,12L flue type inside structure

Metal coating model
White, silver, golden, black color etc optional

Glass model

Colorful glass.
Any design offered available
Stainless steel model

Magnetic/non-magnetic stainless steel

Exhaust pipe

9mm-11mm

Battery operated

DC3V

Gas/water inlet output

1/2 Inch

Heat exchanger

Weight: 0.8-2.4kg
With Tin coating for Antioxidant

Brass water valve

water pressure: 0.02-0.8MPa

Pulse ignitor

Double ignition pin, flame out protection sensor pin, 20min timer,



               Perfect shower:

                       1. Summer shower:35℃


                       2. Winter shower:42℃


                       3. Kitchen washing: 37℃


                       4. Baby shower: 19℃

Production Images

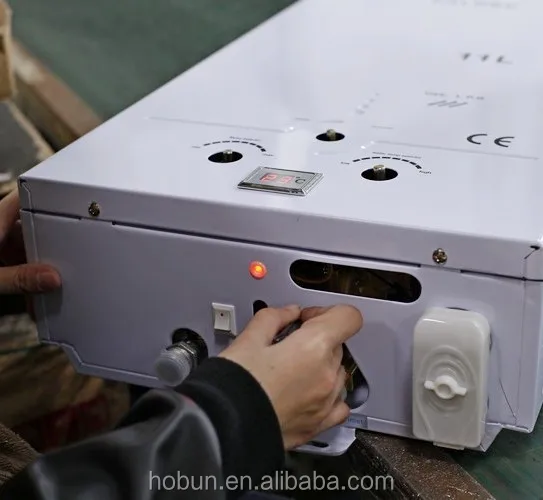

Product assembling

All Experienced and hard-working workers

Product assembling


Product assembling


Gas/water leakage testing.

Electricity testing

product performance testing

Packing & Delivery
Foam protection

With poly bag and Foam for good protecting

Carton box packing

Exporting Standards strong carton box

Loading photos

Export all over the world

Our Company

Hobun

Established here in 2007.

ware house


Showing room
